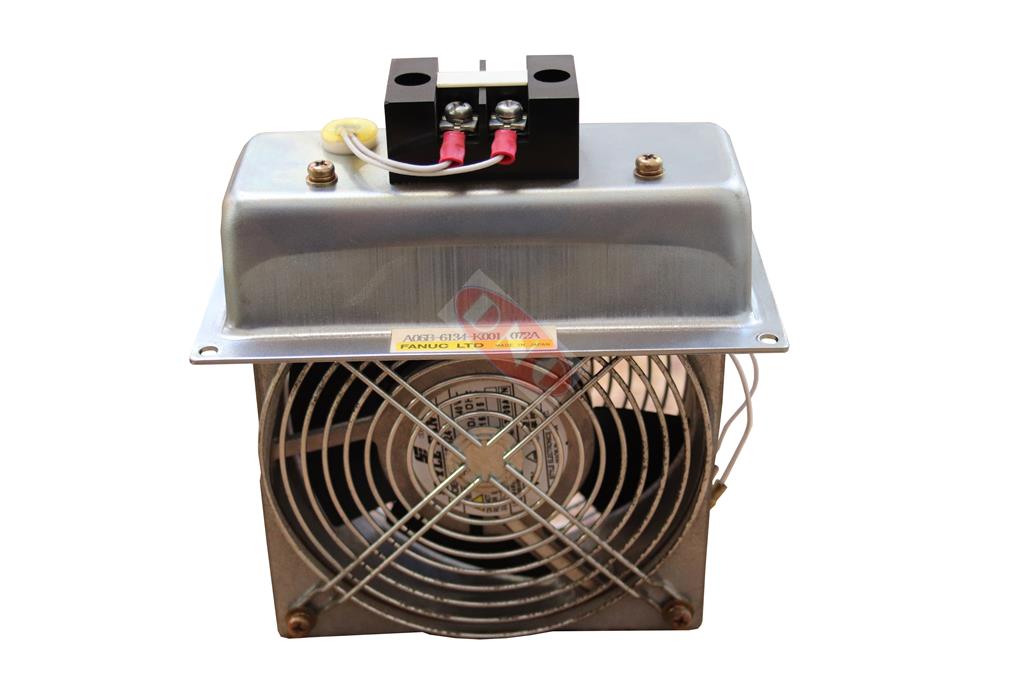

A06B-6134-K001
Fanuc A06B-6134-K001 fan used on BETA i drives. We do carry a replacement fan that can fit in this FAN KIT. Originally the fan is manufactered by STYLE FAN, type US12924. This fan is normally twinned with the two fan units acting as external cooling system to the 300mm biSVSP units that do not have any self-contained external heatsink fans fitted. The fans are cabled back onto a 240v single phase supply and run as soon as the machine is powered up to immediately cool the heatsink of the 6134 series combo amplifier units which gets seriously hot in operation.
DNC carry this Fanuc Fan Unit A06B6134K001 (which signifies the metal adapter frame not the complete unit). The fan measure 120mm * 120mm * 40mm and is 240 VAC rated at 16/15 watt.
