a90l-0001-0578 sanace92wf

A90L-0001-0578

FANUC A90L-0001-0578

  • Critical Stock – our needs first.
  • If we have surplus then we can supply
  • SanAce92WF 9WF0924S203
  • Sanyo Denki DC24V / 0.5A
  • Dimensions: 92*92*32
  • NOTE: Your fan must have A90L-0001-0578 written on it

A90L-0001-0578

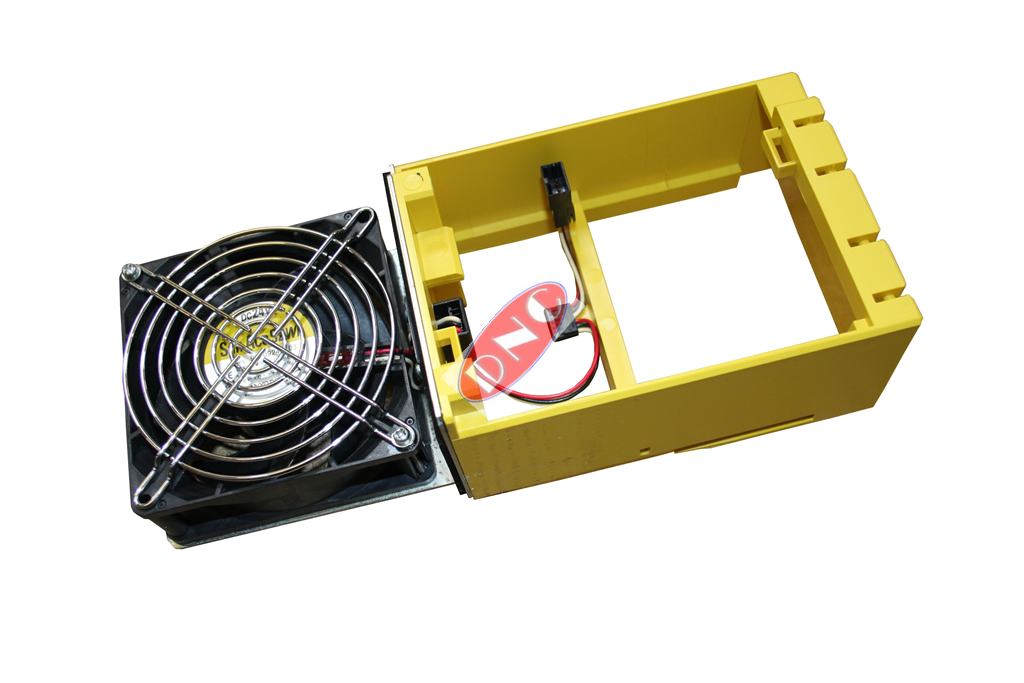

Fanuc A90L-0001-0578 fan used on 150mm ALPHA i modules. This fan has a new style connector and bolts to the modular framework of the 6200 series of drives. For model 22 thru to 37 of both power supply and spindle modules, and very large servo amplifiers.

The Fan is also marked as a Sanyo Denki SANACE92WF with the code 9WF0924S203. It is 92*92*32 mm DC24V and rated at 0.5A and sits attached to a yellow plastic frame.

The frame is part of the top of the amplifier, whereas this fan cools down the heatsink. These are restricted parts and we require them for our own needs first. We supply these on a job by job basis. Contact us for availability and prices.

NOTE: Your fan must have A90L-0001-0578 written on it.
