A06B-6250-H030

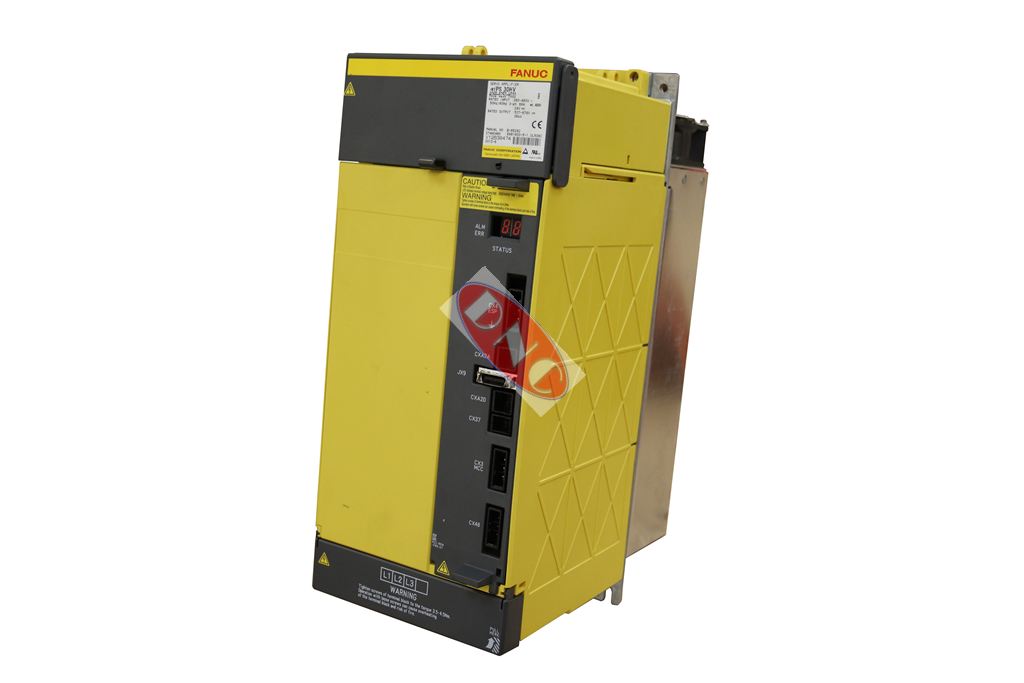

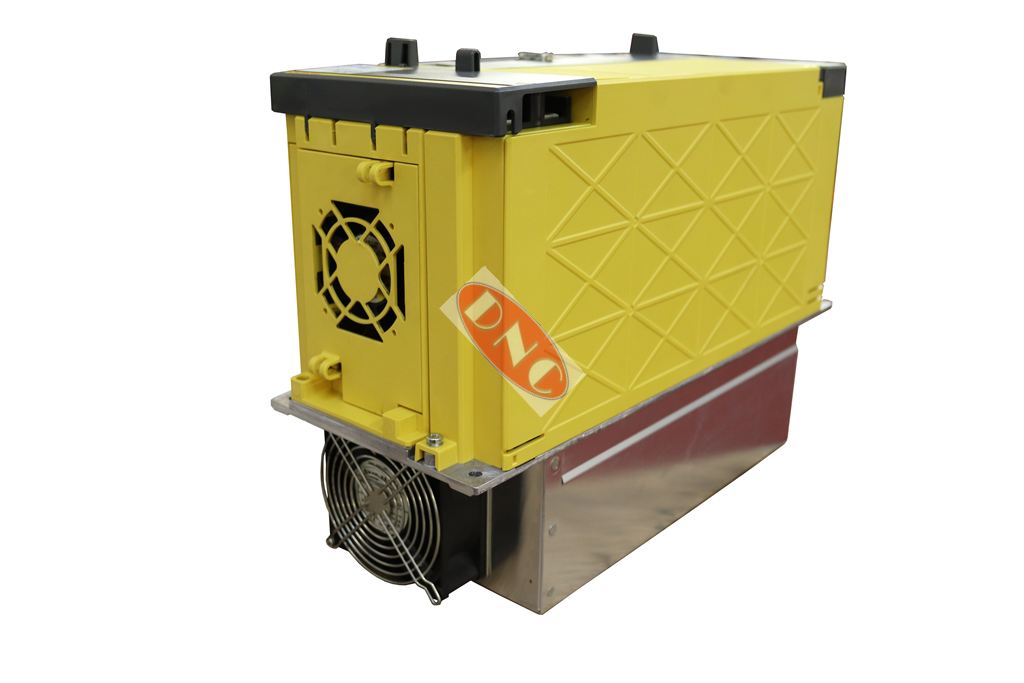

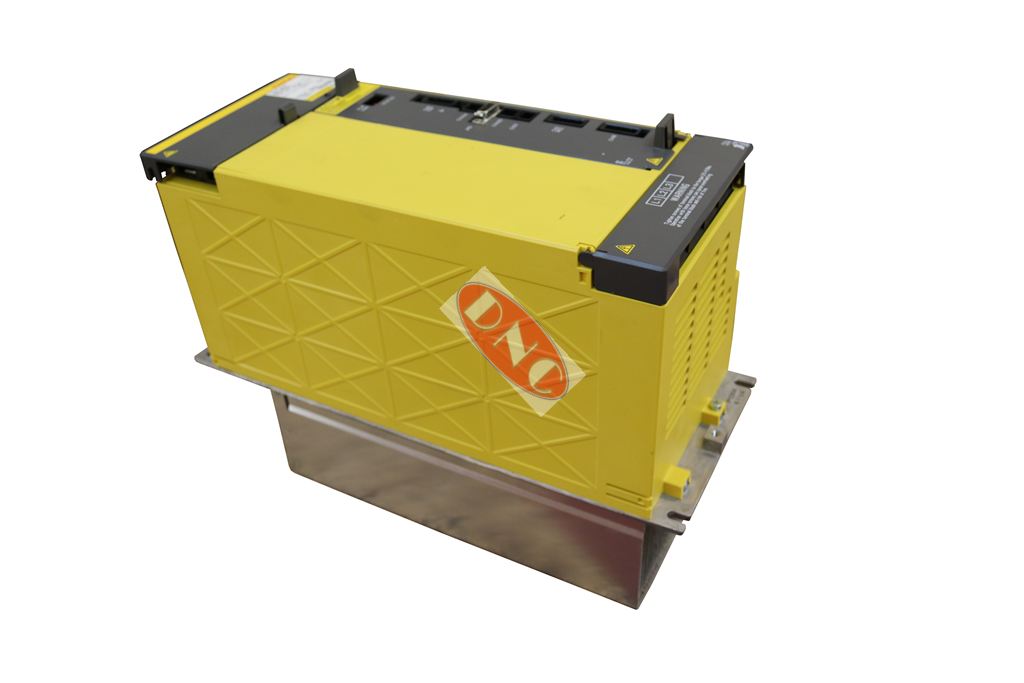

Fanuc A06B-6250-H030 power supply module. Manufactured from 2012 this aiPS 30HV is fitted on many machine tools throughout the world. Current ratings are 400VAC, 66amp and an output of 35kW. This module as all ai power supplies powers the amplifiers; assisting the displacment of regenerative load of the spindle motor when slowing/stopping. This drive has the A20B-2101-0820 pcb fitted. Further this module also powers the 24VDC circuit and DC bus bar for powering all of the spindles and servo amplifiers in the same drive circuit.
DNC offer extensive testing on Fanuc ALPHA i Power modules, via either our 0i-TD or 0i-MD control system. We can ensure that fault finding and testing after repair is done properly rather than assuming that parts might work. Please check our Fanuc aiPS alarms page for error codes. The H030 belongs to the first series of High Voltage drives from the 62xx generation of Fanuc ALPHA i Power Supply Module, either as a PSM-30hvi or aiPS-30hv dependent on where the information has originated.
Contact us at DNC for further information on these aiPS-30HV power supply modules on the high voltage series of ai servo amplifiers.
