A06B-6112-H002

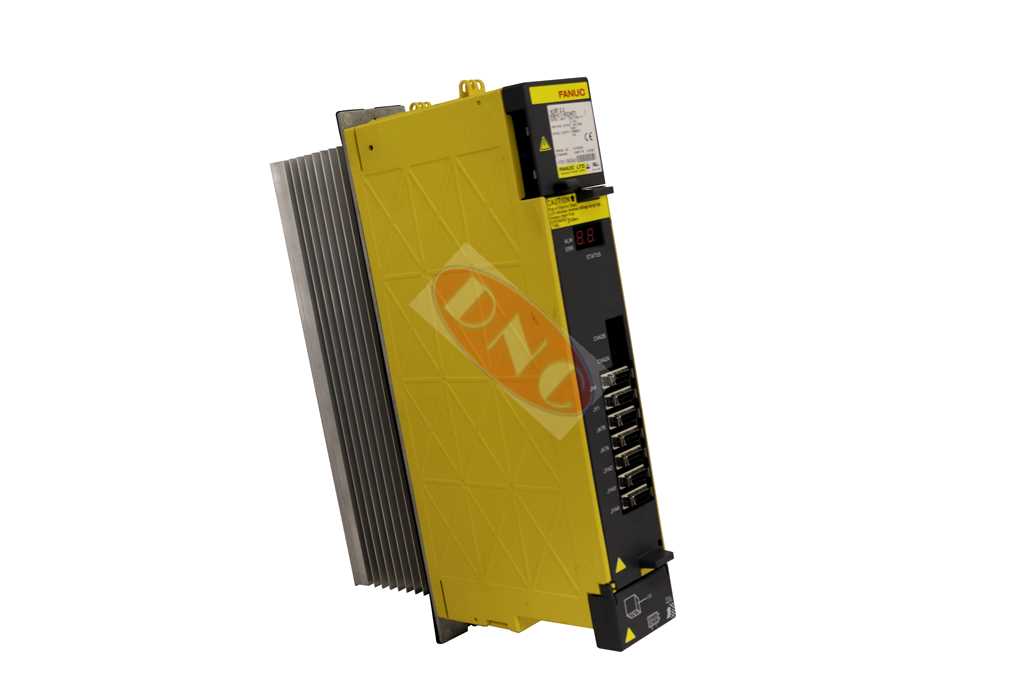

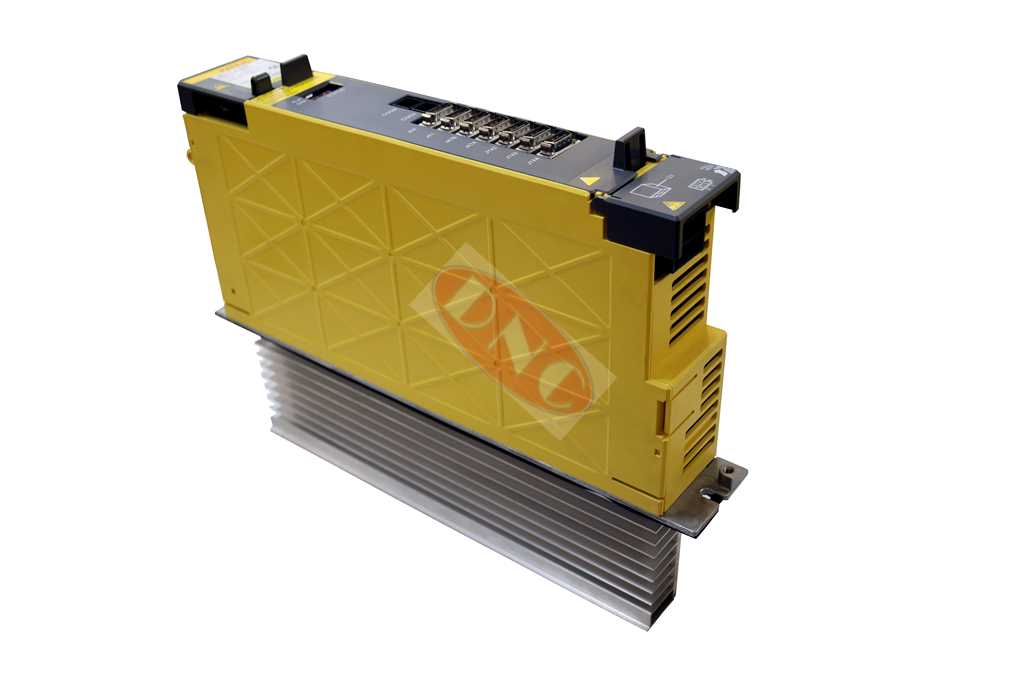

Fanuc A06B-6112-H002 ai Spindle Module. ALPHA i series type 2 interfaced drive manufactured from 2004 to 2008 before being replaced by the 6142 series of 200VAC ALPHA i series spindle modules.
Part of the 200V AC Fanuc alpha i drive series; this 60mm wide CS contouring capable amplifier is from the first generation of ai amplifiers. Together with its servo drive and power supply; they were controlled by various CNC controls from late 16i/18i/21i model B and early 0iB, 0i-C systems.
This drive includes the power board A16B-2203-065x not supplied seperate. We supply fuses, fans and transistors modules if required for these drives.

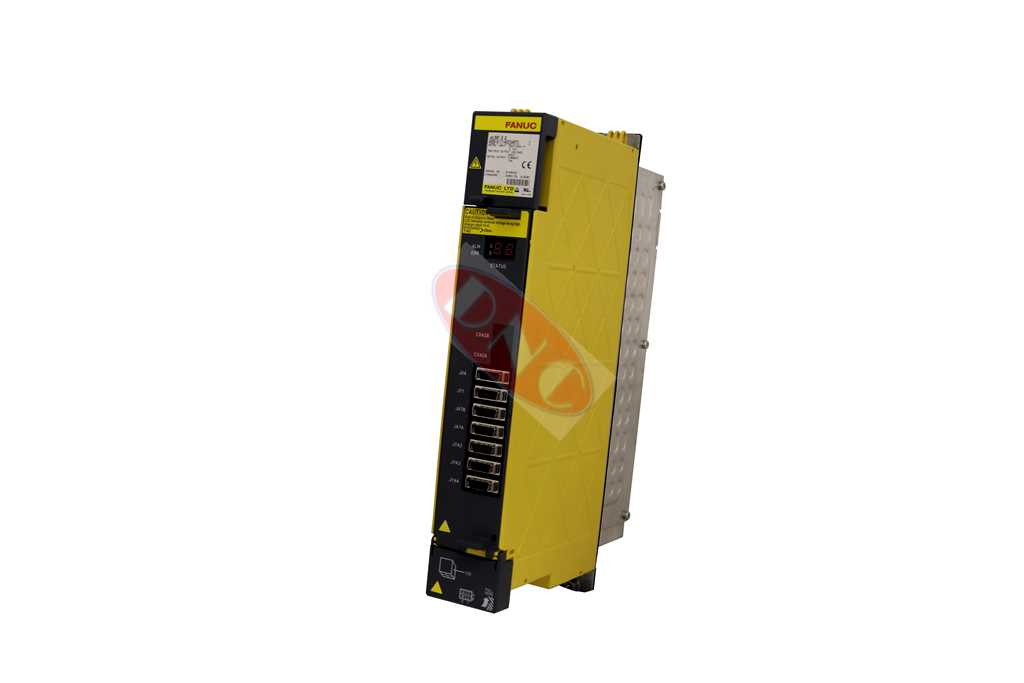

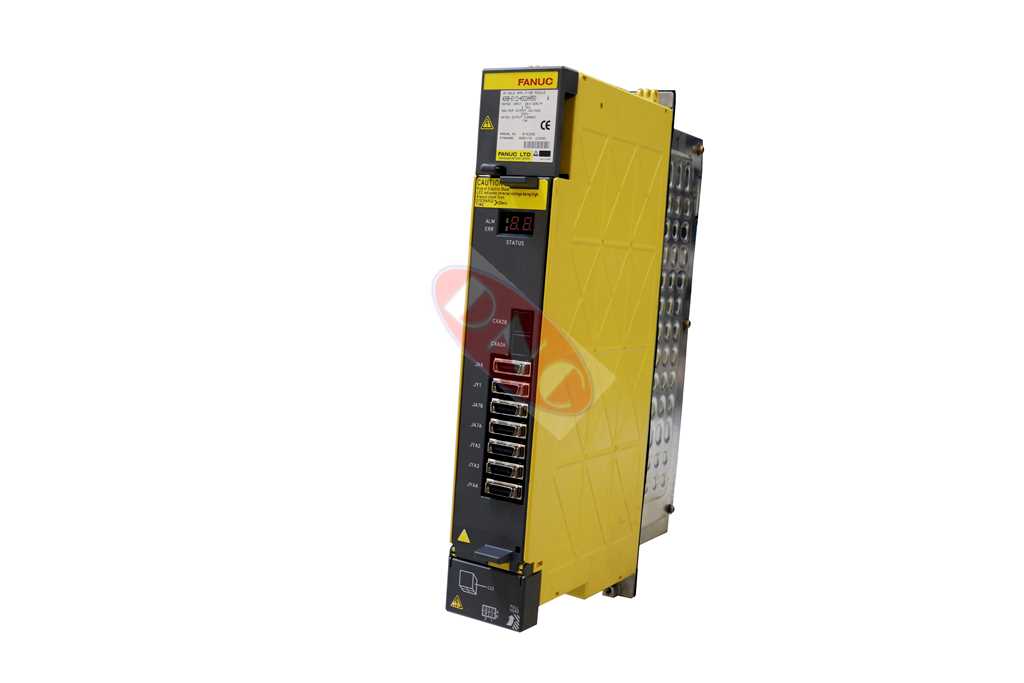

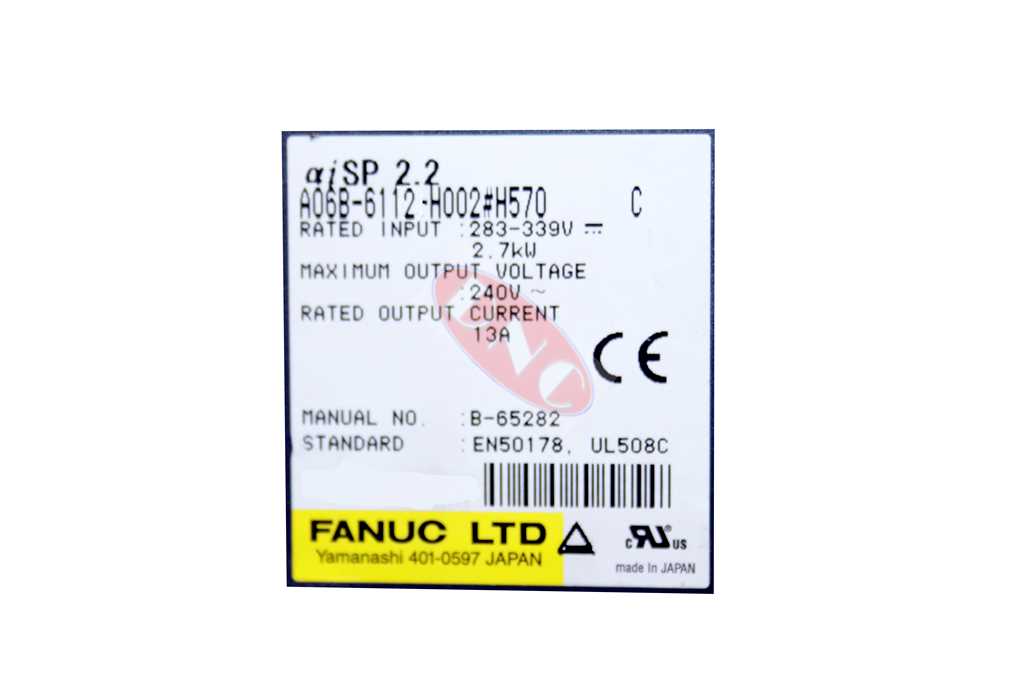

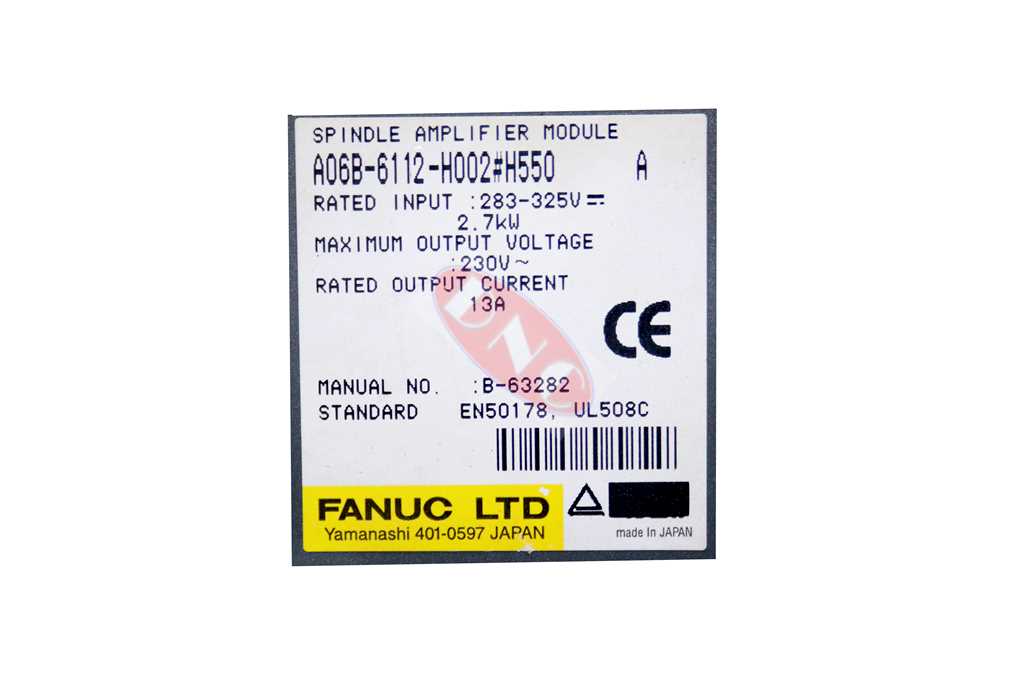

As with all things Fanuc; Fanuc like to do things there way; meaning there are three varients of this drive with different software versions making them incompatible with each other. Namely A06B6112H015#H550, A06B6112H002#H553 and the last version A06B6112H002#H570.
DNC offer several services for the 13 amps version of this drive. Inclusive of service exchange; which we have been offering since the 1990’s on Fanuc. Currently this spindle amplifier is in stock available exchange, 24 hour repair turnaround is possible.
Contact us for prices and availability on A06B-6112-H002 via phone or email. If you are unsure whether your drive is in fact faulty or not; then consult our ai spindle module alarm codes.
