A06B-6116-H011#H560

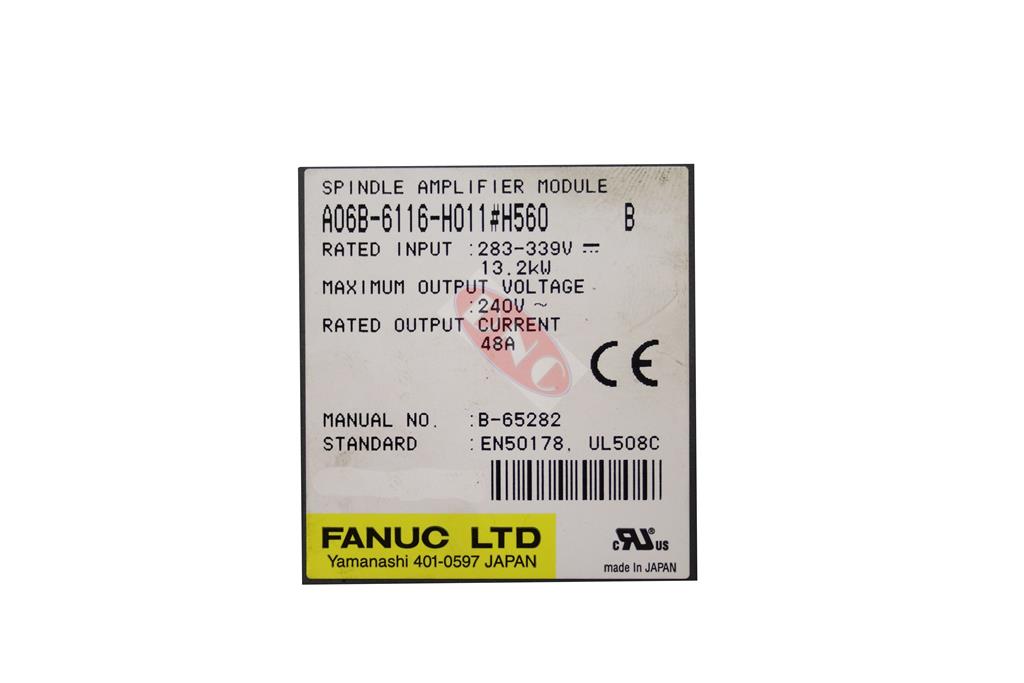

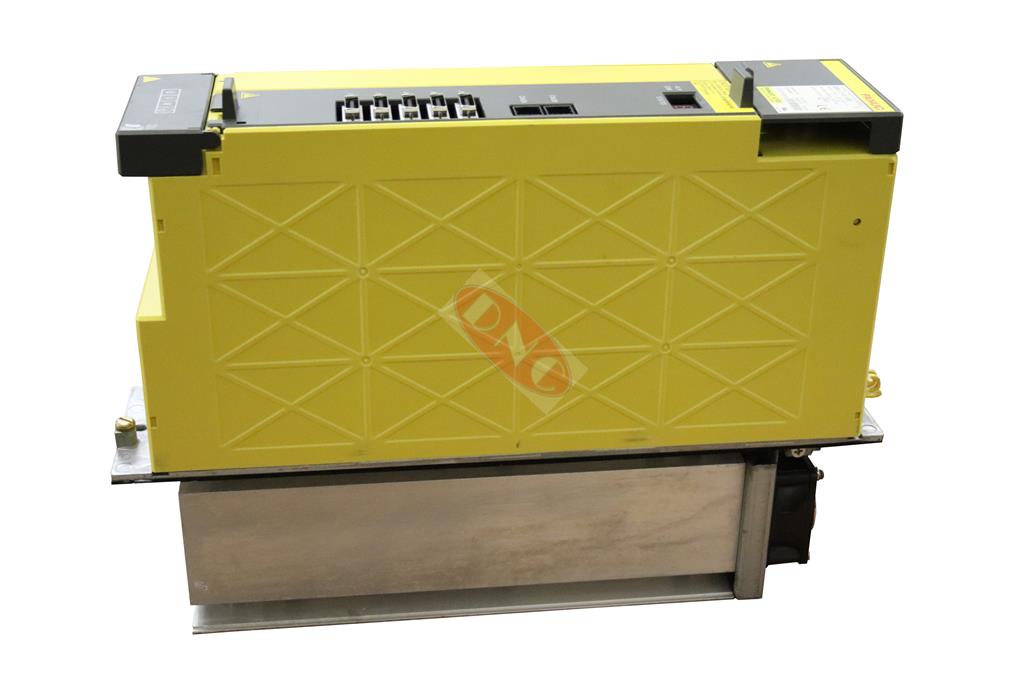

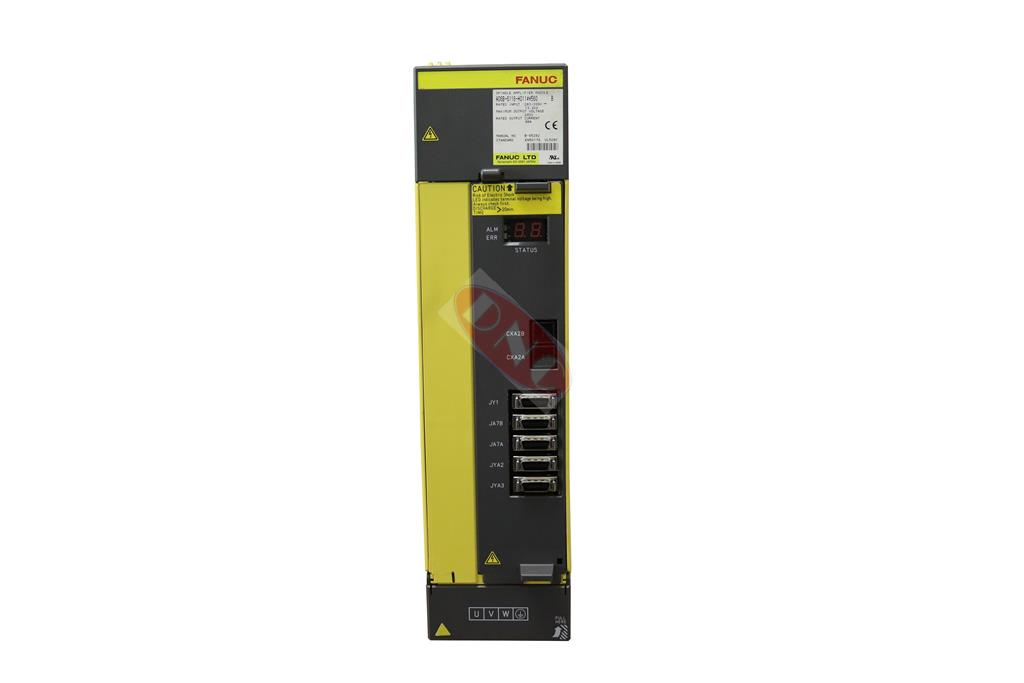

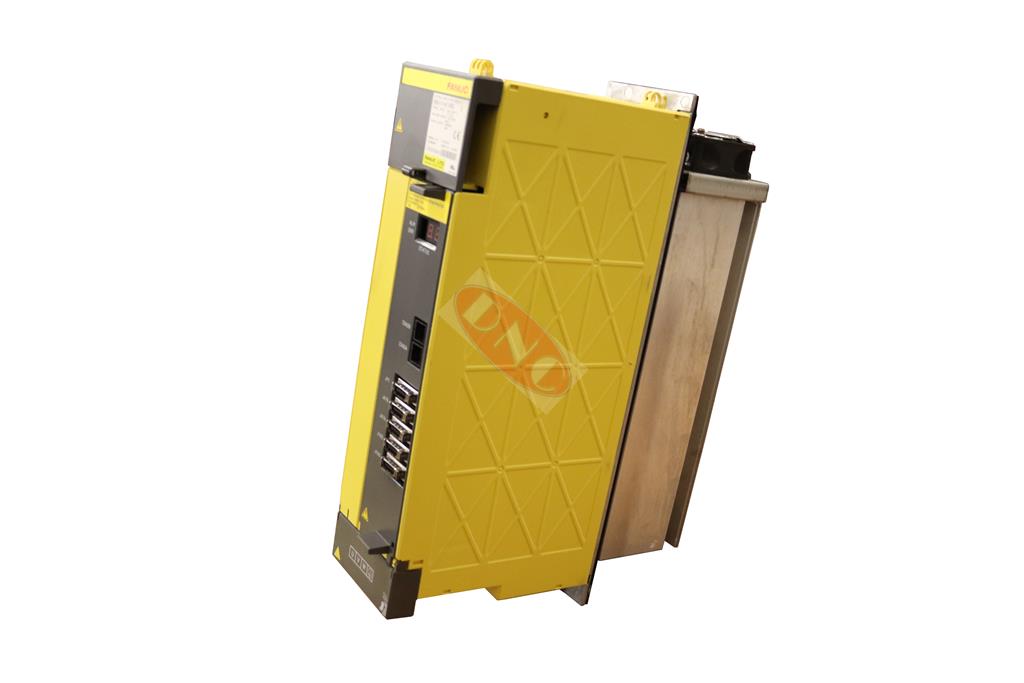

Fanuc A06B-6116-H011#H560 ai Spindle Module Drive. Known as the aiC spindle with C type spindle sensor interface with spindle motor without a speed sensor. Manufactured from 2004 to 2010. This aiC 11 run together with single, dual or triple channel servo amplifier modules powered from ai power supply these amplifiers make up the ai drive system with matching servo and spindle motors.

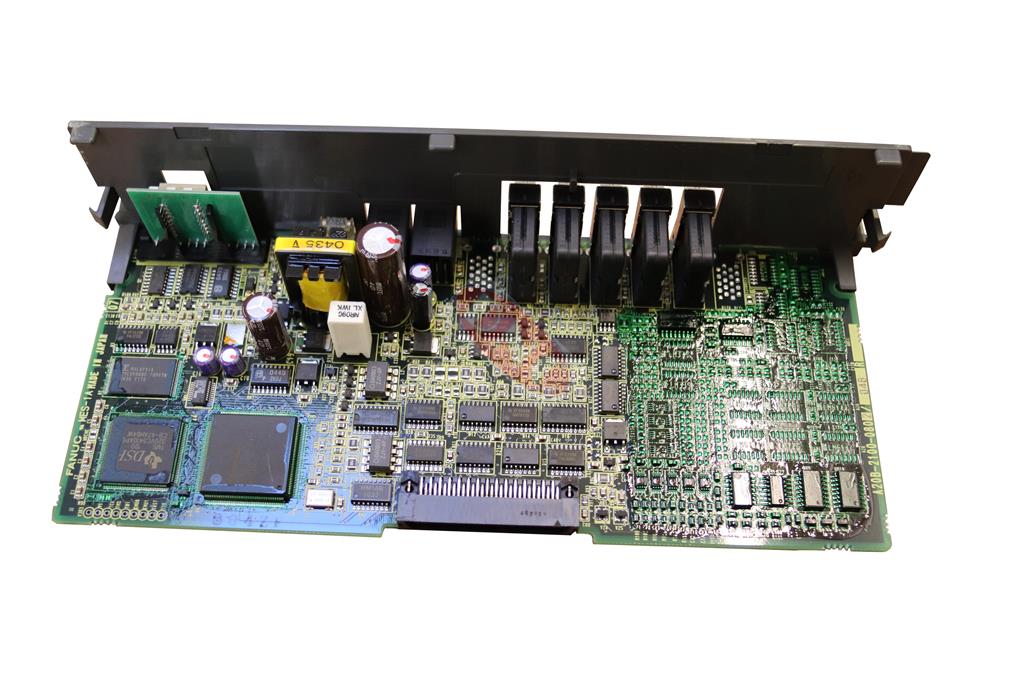

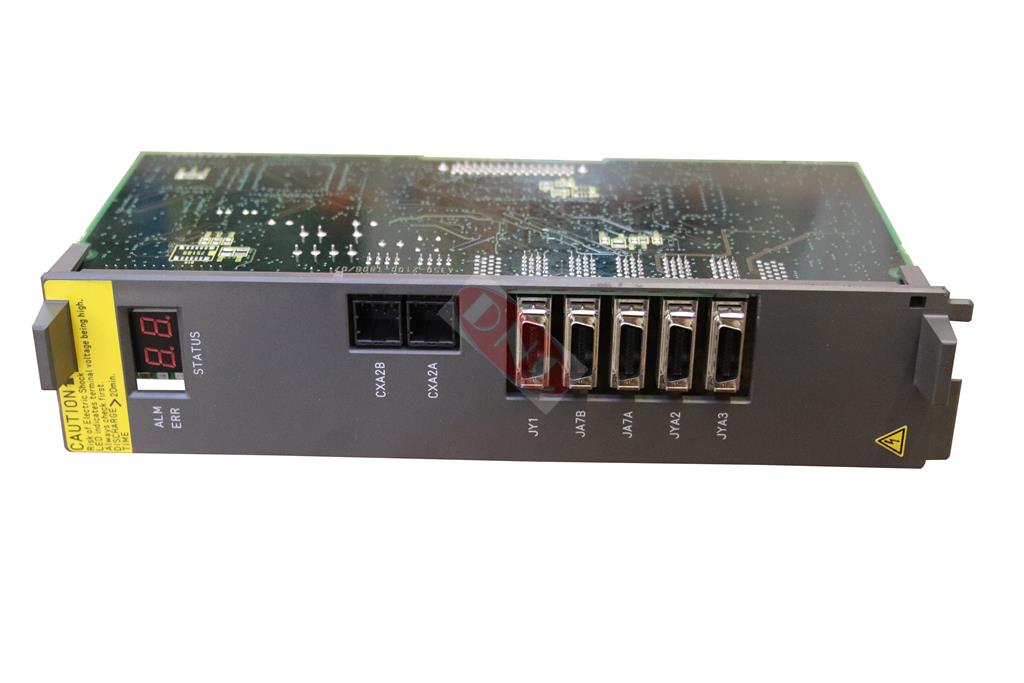

As part of the 200V AC Fanuc alpha i drive series; this amplifier is from the last generation of aiC amplifiers. Together with its servo drive and power supply; they were controlled by various CNC controls from late 16i/18i/21i model B and early 0iB systems. This drive includes the control PCB A20B-2100-0802 not supplied seperate.
DNC offer several services for the 48A version of this drive. Inclusive of service exchange; which we have been offering since the 1990’s on Fanuc. Currently this spindle amplifier is in stock available exchange. Alternatively 24 hour repair turnaround is the norm. Fault diagnosis and testing is extensively supported. Further we also supply fuses, fans and transistors modules if required for these drives.
Contact us for prices and availability on A06B6116H011#H560 via phone or email. If you are unsure whether your drive is in fact faulty or not; then consult our ai spindle module alarm codes.
