A06B-6121-H011

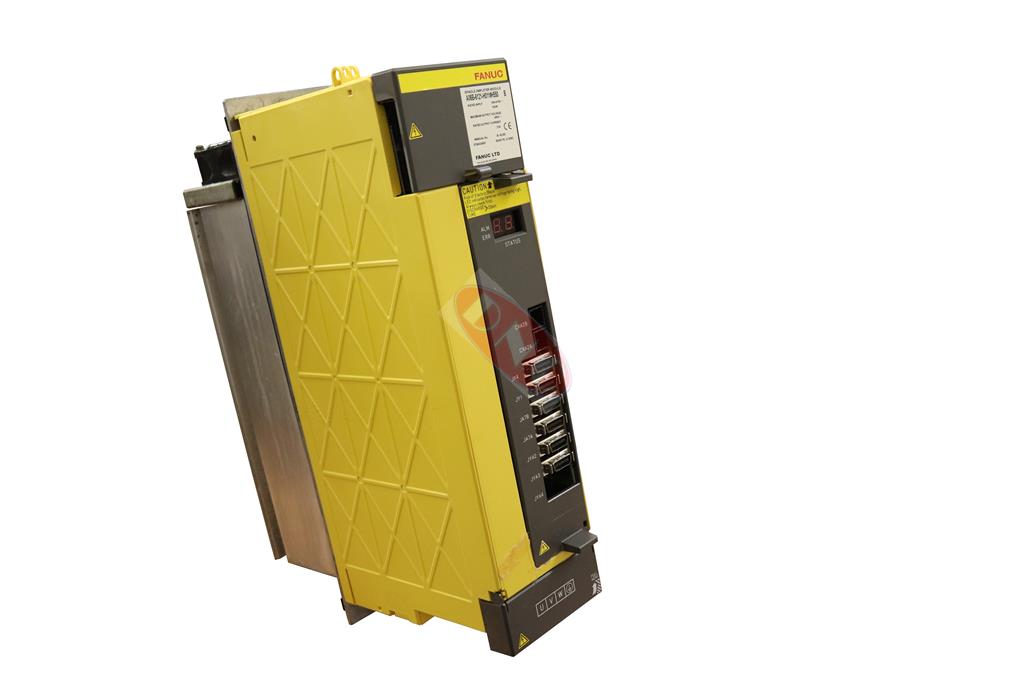

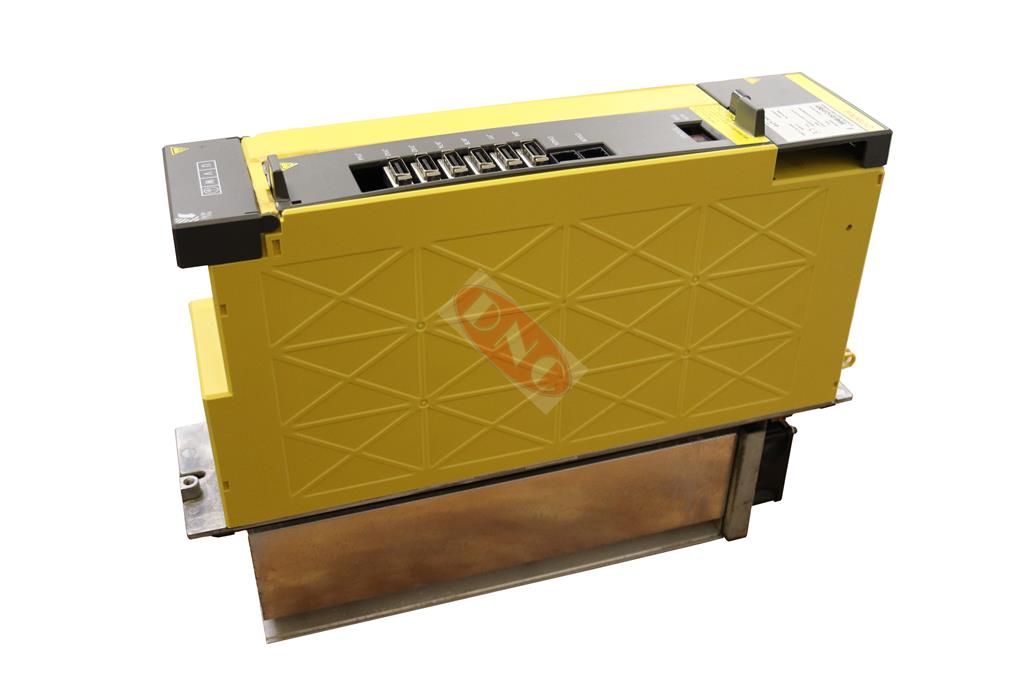

Fanuc A06B-6121-H011 spindle amplifier module. This high voltage ALPHA i series SPM-11HVi spindle drive is heavily used within the CNC industry. This HV spindle has the type one interface for standard sensor feedback. We offer exchange on this module; if your looking for testing or repair please contact us for more information on what we offer.
This 23amp spindle module contains the 400VAC wiring PCB: A16B-2203-0821 is fitted inside this aiSP-11HV module (not available seperately). If you are unsure if your HV spindle drive is faulty then check the dual front 7 segment display and consult our ALPHA i spindle amplifier module alarms.
If the aiSP turns out not to be faulty then at DNC we also support your power supply module and servo amplifier drives. We can also test spindle motors and your control system.

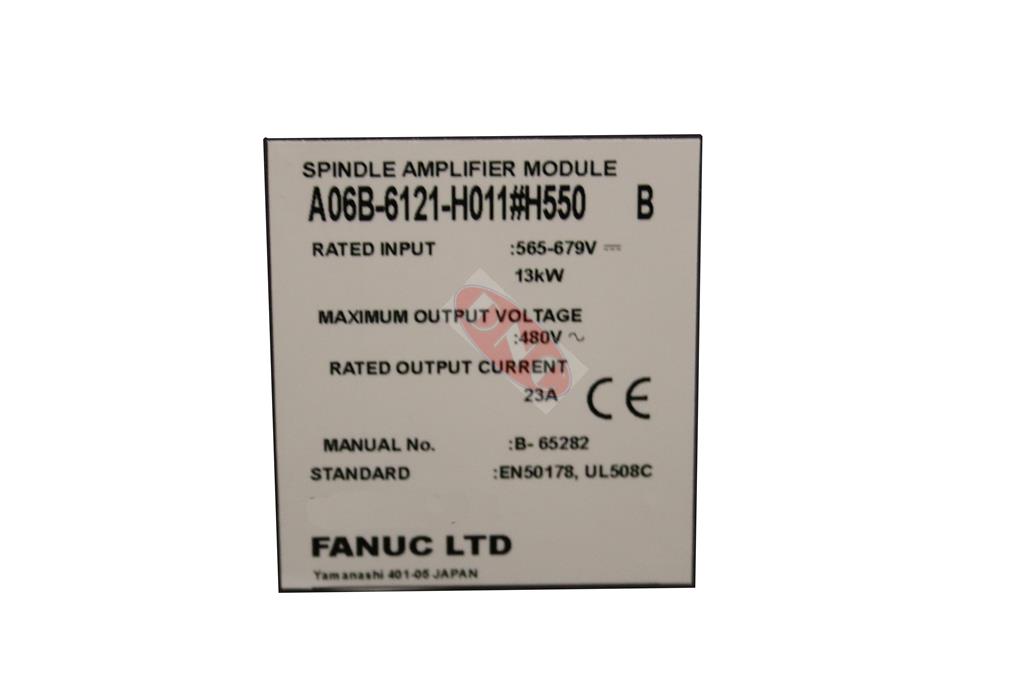

There are several software versions of this SPM including the A06B6121H011#H550, A06B6121H011#H570 and so on. Please let us know the suffix off your drive part number as this dictates different software versions and they are NOT compatible.
Contact us on +44 (0)1793 615356 for further information on stock, prices for various services beyond listed on this page. Turnaround times on testing and repair or rebuild services dependent on the condition of your aiSP-11HV spindle amplifier.
