A06B-6151-H006#H580

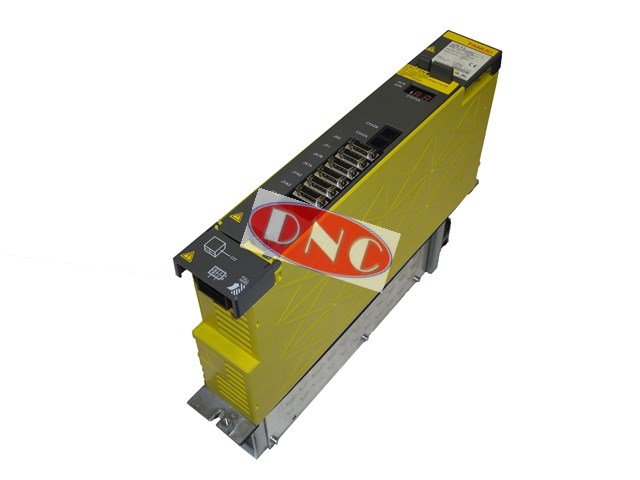

Fanuc A06B-6151-H006 spindle amplifier module. This high voltage ALPHA i series aiSP-5.5HV spindle drive fitted on many cnc machines. This 60mm wide HV spindle has the type one interface for standard sensor feedback.
This 14 amp spindle module contains the 400VAC wiring PCB: A16B-2203-0826 is fitted inside this aiSP-5.5HV module (not available seperately). If unsure your spindle drive is faulty then check the dual front 7 segment display and consult our ALPHA i spindle amplifier module alarms.
If the aiSP turns out not to be faulty; at DNC we support and supply replacement power supply module and servo amplifier drives. We can also test spindle motors and your control system.
Unlike the previous generation of this SPM module it only has one software revision namely A06B6151H006#H580 and so on.
Contact us on +44 (0)1793 615356 for further information on stock, prices for various services beyond listed on this page. Turnaround times on testing and repair or rebuild services dependent on the condition of your aiSP-5.5HV spindle amplifier.
