A06B-6152-H030

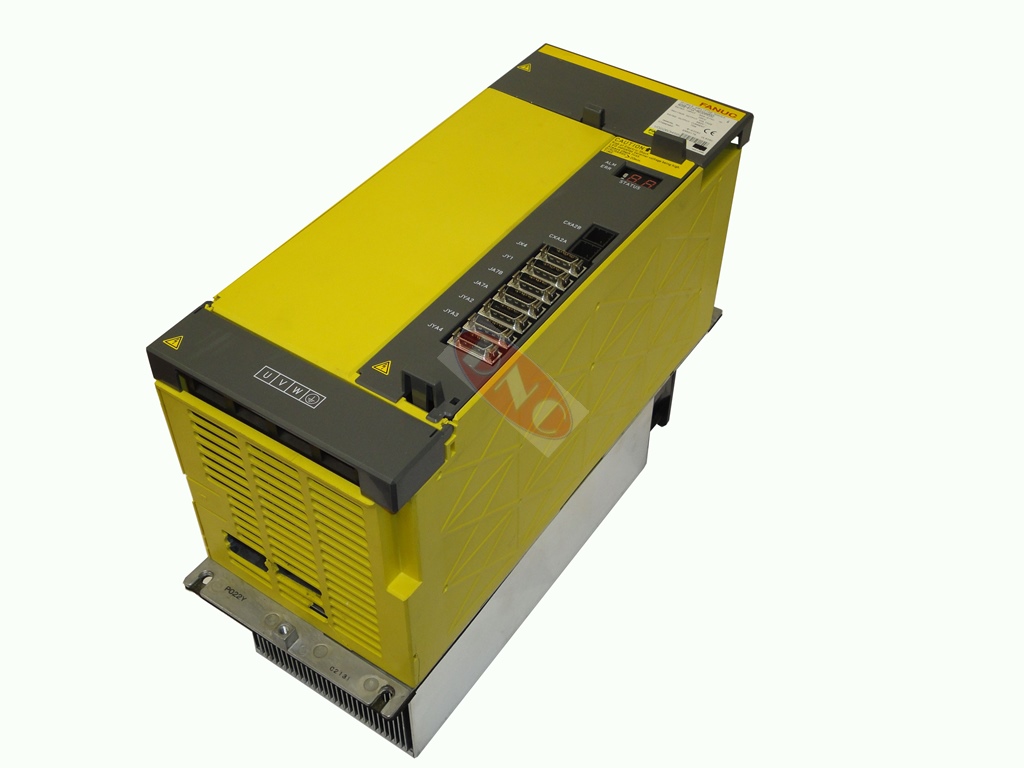

Fanuc A06B-6152-H030 spindle amplifier module. This high voltage ALPHA i series aiSP-30HV is a 2nd generation of the type 2 or B2 spindle amp from the ALPHA i generation of spindles. Currently we have stock of this drive. Spindle Amplifier ALPHA iSP 30HV Level-up Type B (Two Spindle Sensor Inputs), 400 V AC Input.
This 150mm wide 75 amp spindle module contains the 400VAC wiring PCB: A16B-2203-087x is fitted inside this aiSP-30HV (II) module (not available seperately). If unsure your spindle drive is faulty then check the dual front 7 segment display and consult our ALPHA i spindle amplifier module alarms.
If the aiSP turns out not to be faulty; at DNC we support and supply replacement power supply module and servo amplifier drives. We can also test spindle motors and your control system.
Unlike the previous generation of this SPM module it only has one software revision namely A06B6152H030#H580 and so on.
Contact us on +44 (0)1793 615356 for further information on stock, prices for various services beyond listed on this page. Turnaround times on testing and repair or rebuild services dependent on the condition of your aiSP-30HV (II) spindle amplifier.
