A06B-6220-H006#H600

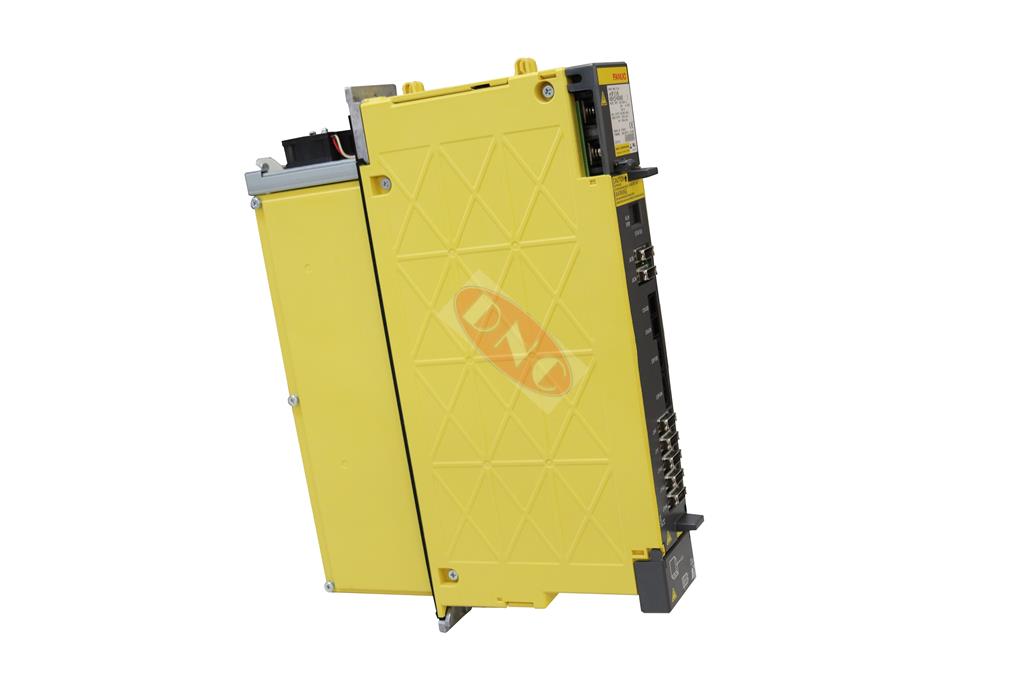

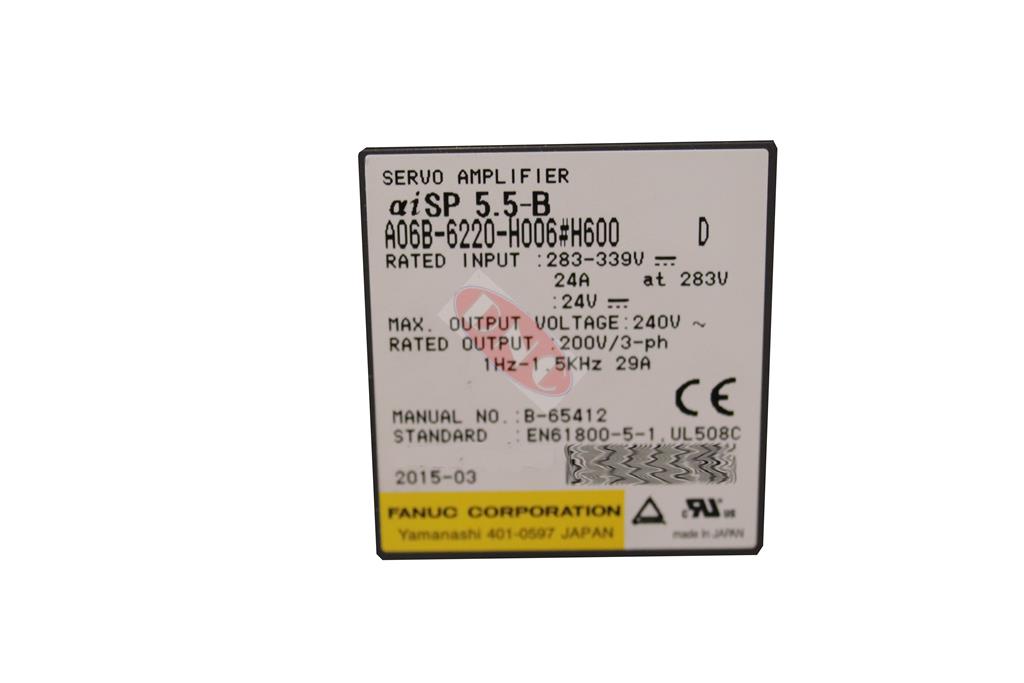

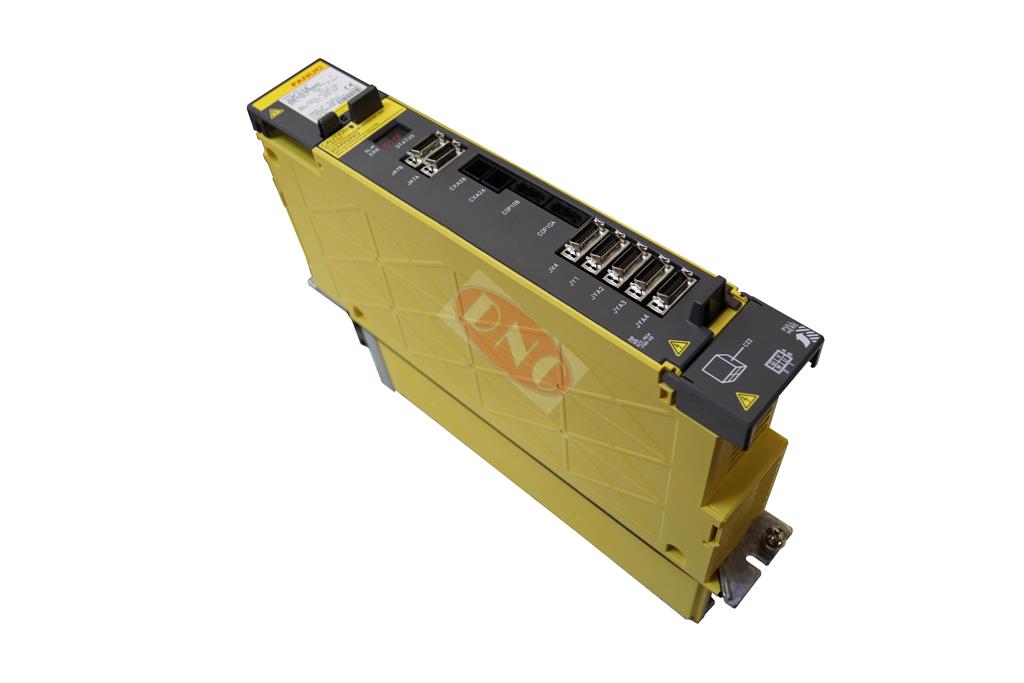

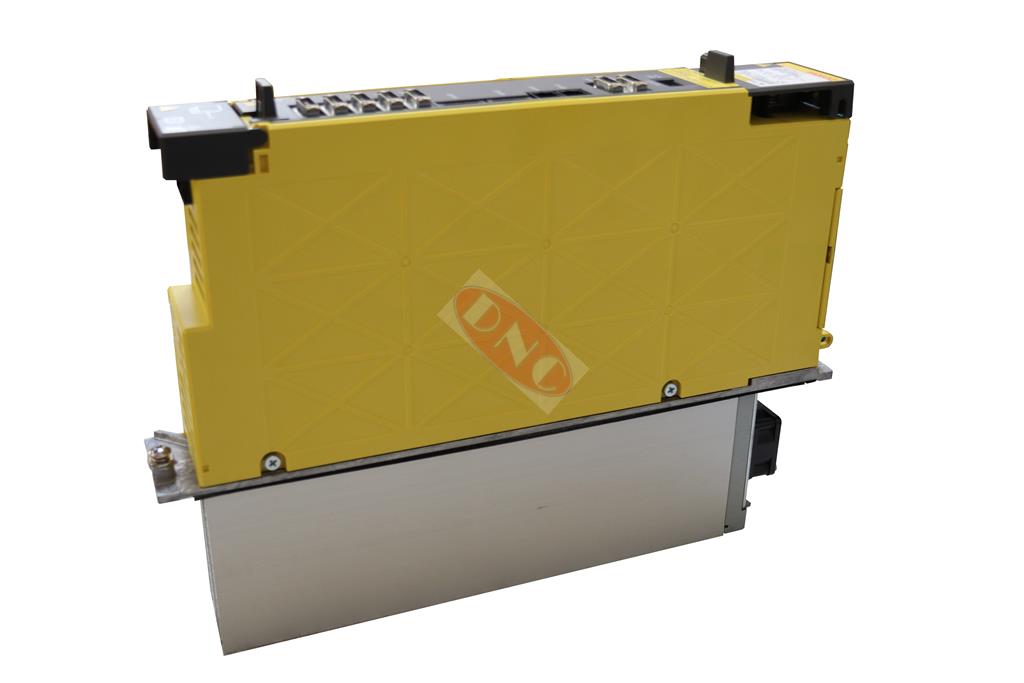

FANUC A06B-6220-H006#H600 aiSP 5.5-B spindle amplifier module. Manufactured from 2015 onwards; these model 15 servo amplifier model numcer is aiSP 11-B. The drive contains the 1st generation -B spindle control pcb A20B-2101-087x pcb and power board A20B-2101-0921.

DNC offer extensive testing on Fanuc ALPHA i spindle modules, via either our 0i-MF+ controller. Too ensure that fault finding and testing after repair is done properly rather than assuming that parts might work, etc. Prices listed are for exchange only, though repair can be a cheaper option if machine downtime is not such a critical issue. The H006 belongs to the first -B generation 6200 series Fanuc ai 200VAC ai spindle amplifier labeled as servo amplifier module, but with the aiSP 11-B model code. This version of unit for the late 6200 series drives is a 29 amp output.

Note: They’re are three INCOMPATIBLE versions of this SPINDLE AMPLIFIER with the same part number A06B-6220-H006#H600. Its the model code that changes aiSP 5.5-B or aiSP 5.5 which seperates the two; as the -B is for the later 0i-MF+; 31/32/35-B controls.

If you are unsure if your aiSP 5.5-B spindle amplifier is faulty; then consult our Fanuc aiSP alarm pages
