A06B-6222-H015#H610

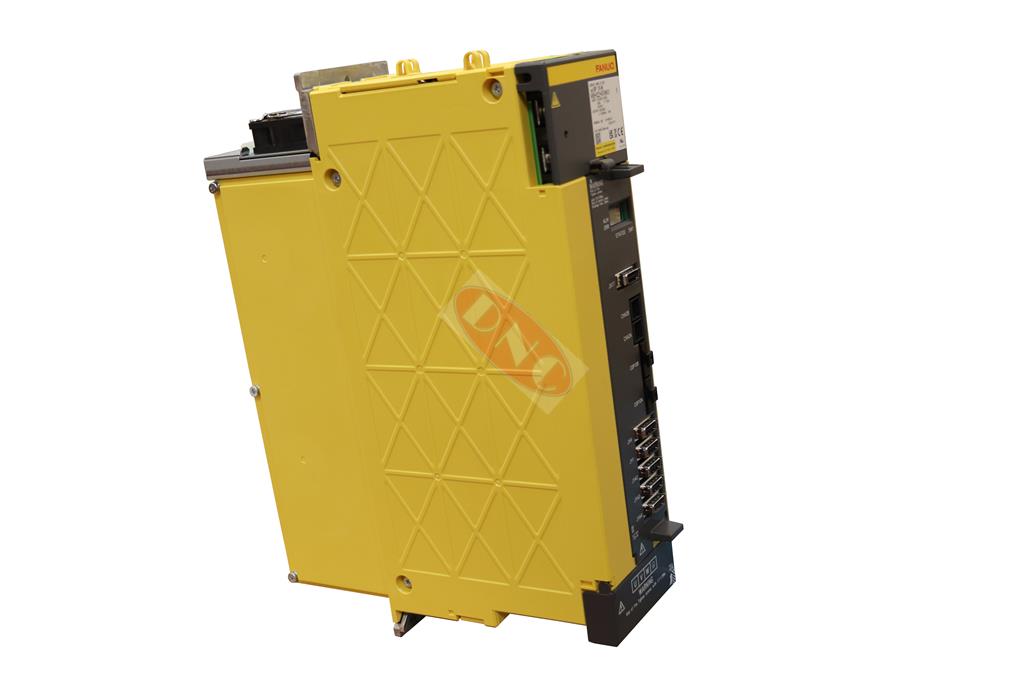

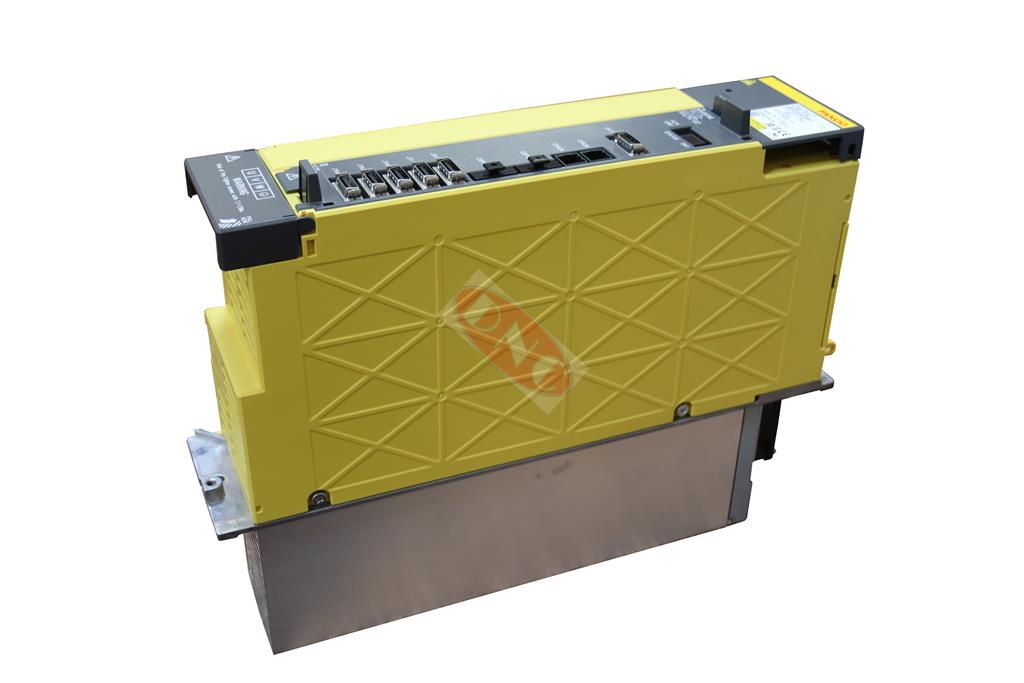

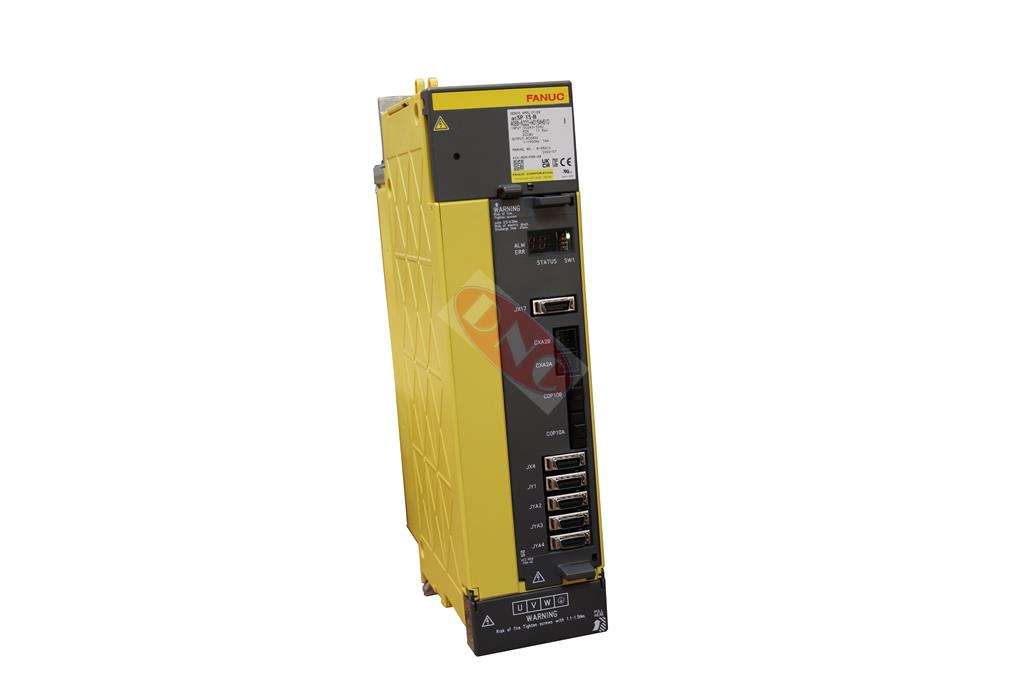

Fanuc A06B-6222-H015#H610 spindle amplifier module. Manufactured from 2020 onwards; this model 15 servo amplifier model number is aiSP 15-B. The drive contains the -B spindle control pcb A20B-2102-067x pcb and power board A17B-2000-031x.
DNC offer extensive testing on Fanuc ALPHA i spindle modules, via either our 0i-MF+ controller. Too ensure that fault finding and testing after repair is done properly rather than assuming that parts might work, etc. Prices listed are for exchange only, though repair can be a cheaper option if machine downtime is not such a critical issue.

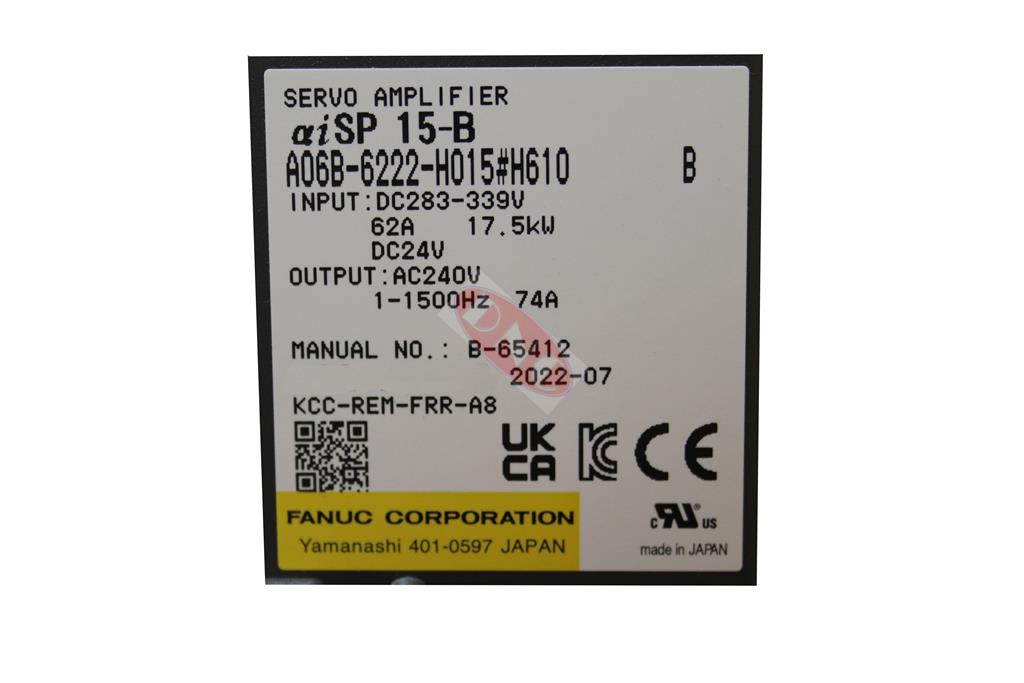

The H015 belongs to the second -B generation 6222 series Fanuc ai 200VAC ai spindle amplifier labeled as servo amplifier module, but with the aiSP 15-B model code. This version of unit for the late 6222 series drives is a 74 amp output.
If you are unsure if your aiSP 15-B spindle amplifier is faulty; then consult our Fanuc aiSP alarm pages
