A06B-6222-H026#H610

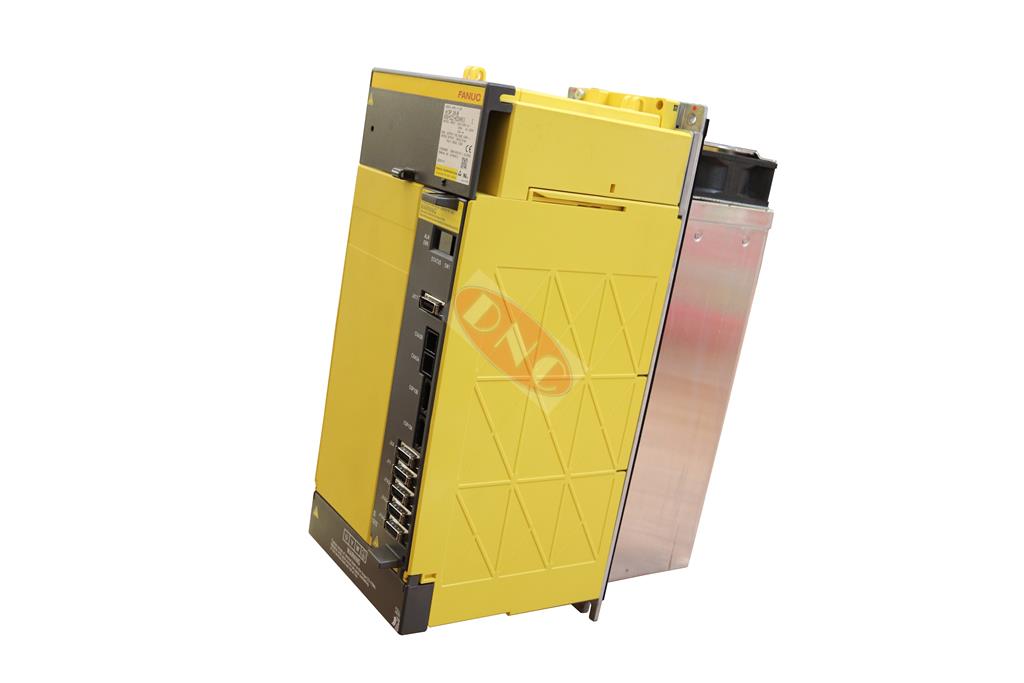

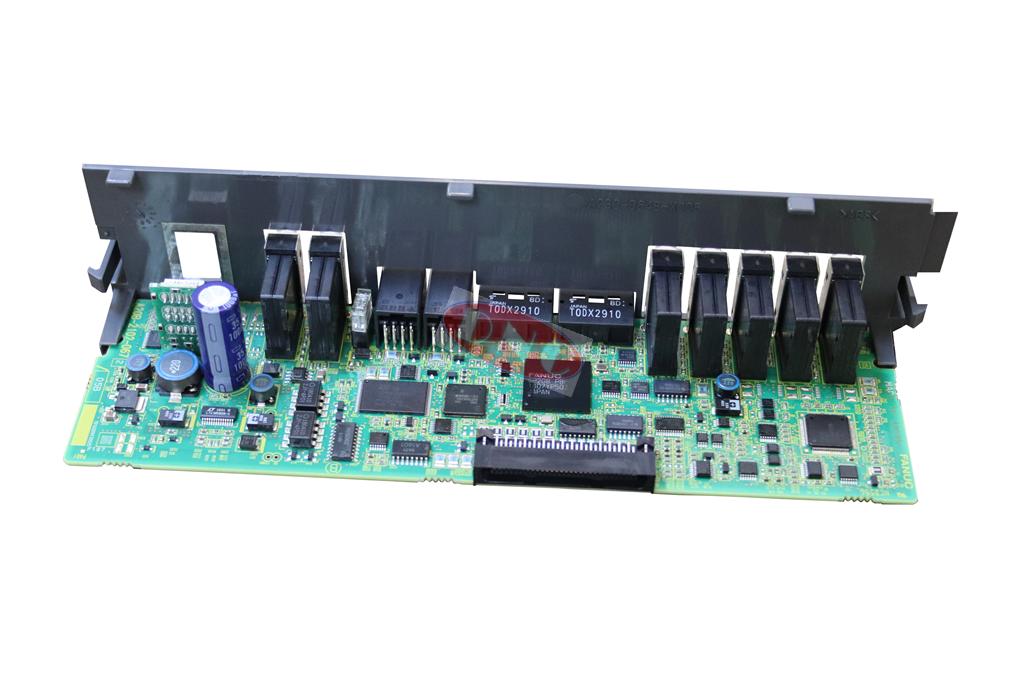

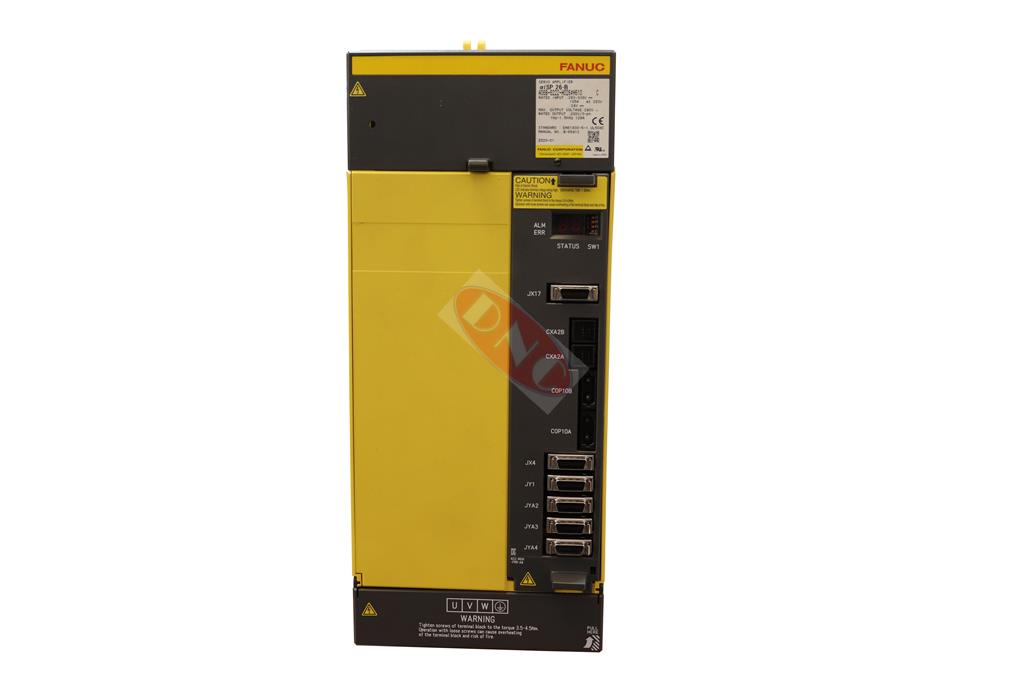

FANUC A06B-6222-H026#H610 aiSP 26-B spindle amplifier module. Manufactured from 2019 onwards; these model 26 servo amplifier model numcer is aiSP 26-B. The drive contains the -B spindle control pcb A20B-2102-067x pcb and power board A17B-2000-0311.

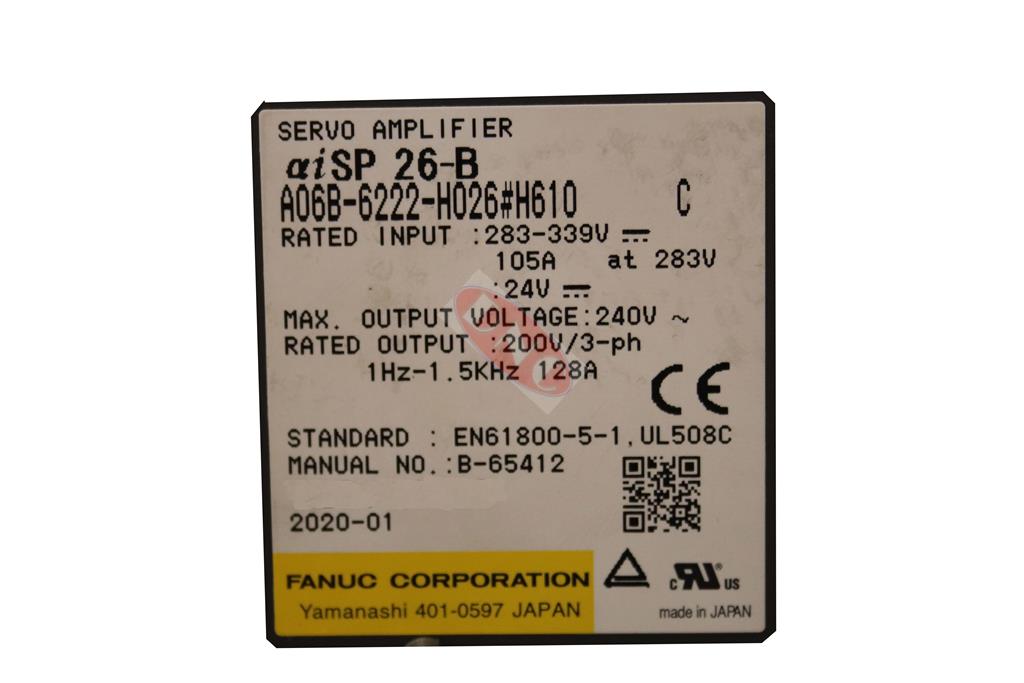

DNC offer extensive testing on Fanuc ALPHA i spindle modules, via either our 0i-MF+ controller. Too ensure that fault finding and testing after repair is done properly rather than assuming that parts might work, etc. Prices listed are for exchange only, though repair can be a cheaper option if machine downtime is not such a critical issue. The H015 belongs to the second -B generation 6222 series Fanuc ai 200VAC ai spindle amplifier labeled as servo amplifier module, but with the aiSP 26-B model code. This version of unit for the late 6222 series drives is a 128 amp output.

Note: They’re are two INCOMPATIBLE versions of this SPINDLE AMPLIFIER with the same part number A06B-6222-H026#H610. Its the model code that changes aiSP 26-B or aiSP 26-B which seperates the two; as the -B is for the later 0i-MF+; 31/32/35-B controls.

If you are unsure if your aiSP 26-B spindle amplifier is faulty; then consult our Fanuc aiSP alarm pages
