A06B-6117-H101

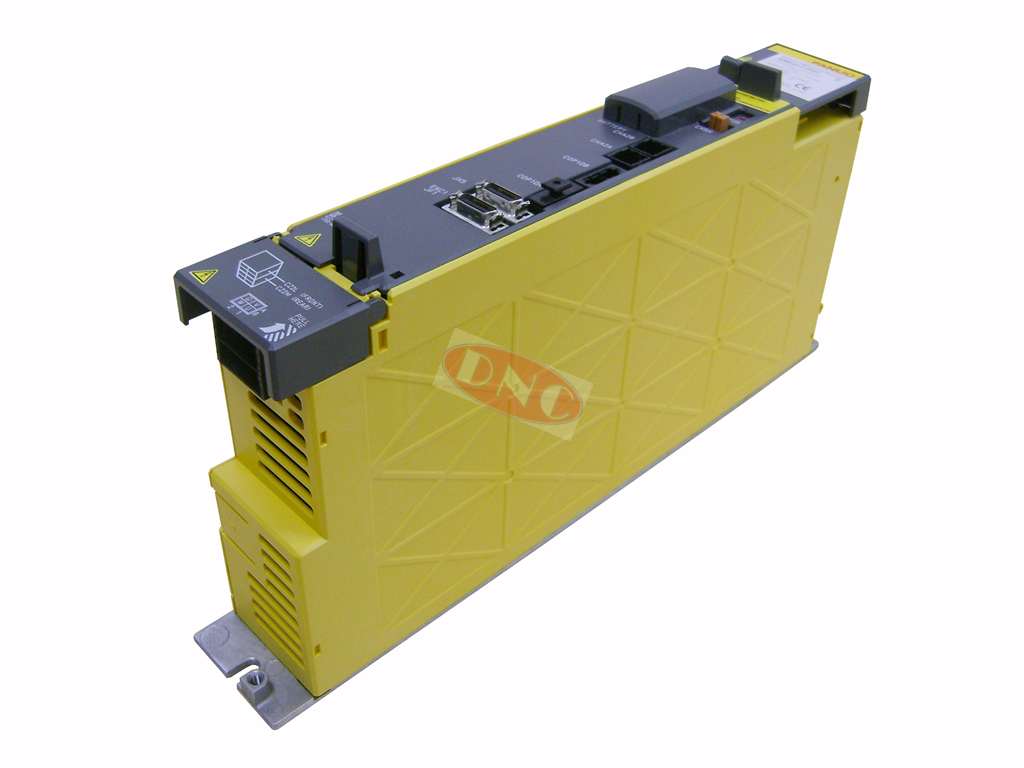

Fanuc A06B-6117-H101 Servo Amplifier Module. This ALPHA ai SV 4 interfaces via FSSB Fanuc Serial Servo Bus. This HRV2 and HRV3 enabled H101 series twin ALPHA servo amp ran with the i version B generations of the 15i,16i,18i,21i controls and early 3xi model amps. This FSSB amp drives model a0.4/5000, a0.6/6000 servo motors. This drive has the wiring board A16B-2203-0690 fitted within and the control pcb A20B-2101-004x. Neither are available seperately.
At DNC supply this drive on a service exchange basis which can ship immediately on receipt of payment for exchange + deposit. If you are unsure if the part is faulty then ship it in for testing and repair which is normally cheaper than exchange with a 24 hour turnaround.
Alternatively if your looking for outright sale then select the option on the drop down and click add to basket. For this SVM1-4i HRV rated drive we also supply transistor modules, cooling fans and battery packs for ABS feedback. Further we also supply the complete motors. Contact us for more information on this module.
