A06B-6124-H202
Fanuc A06B-6124-H202 servo amplifier module. This alpha i high voltage series aiSV 10/10HV dual axis servo drive is standard version for tuning on late model B 16i, 18i and 21i controls.. Allowing for more precison in servo movement for tighter tolerance machining.

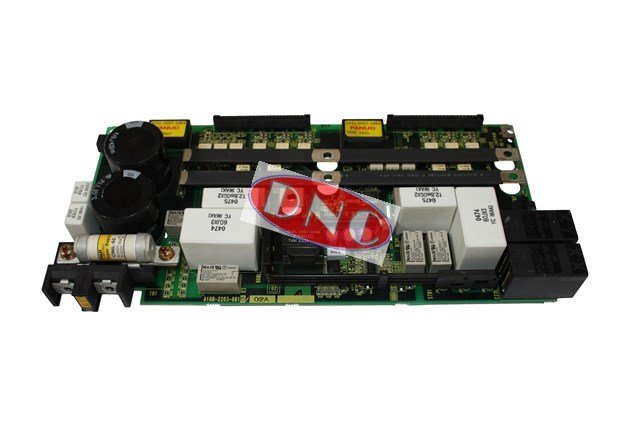

This amplifier is part of the first release of the 61xx series of 400VAC drives. As a two channel servo amp its capable of driving AC model ai2/5000HV and similar rated servo motors. The drive contains a power board A16B-2203-081x and a standard control PCB A20B-2100-0741. The boards are not available seperate from the complete drive.
DNC offer several services for the aiSV2-10/10 including exchange, surplus as well testing and 24 hour repair turnaround as standard.
ALPHA i series A06B6124H202 amplifier is in stock. Warranty is supplied on exchange and repair. Testing facilities and diagnostics are available on this module; as well extensive repairs. Further we also supply 1200V transistor modules, fans, fuses and batteries for these drives. If you are not sure if your drive is faulty or not please consult our Fanuc ai servo amplifier module alarm page.
Contact us for availability and pricing on this aiSV-10/10HV amplifier.
