A06B-6102-H202

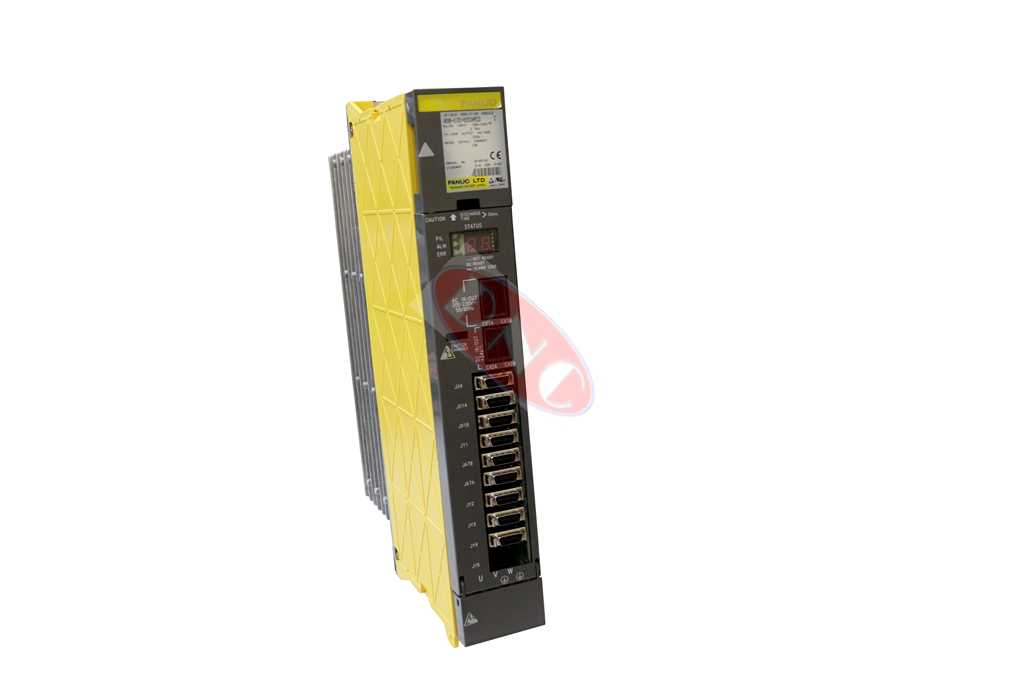

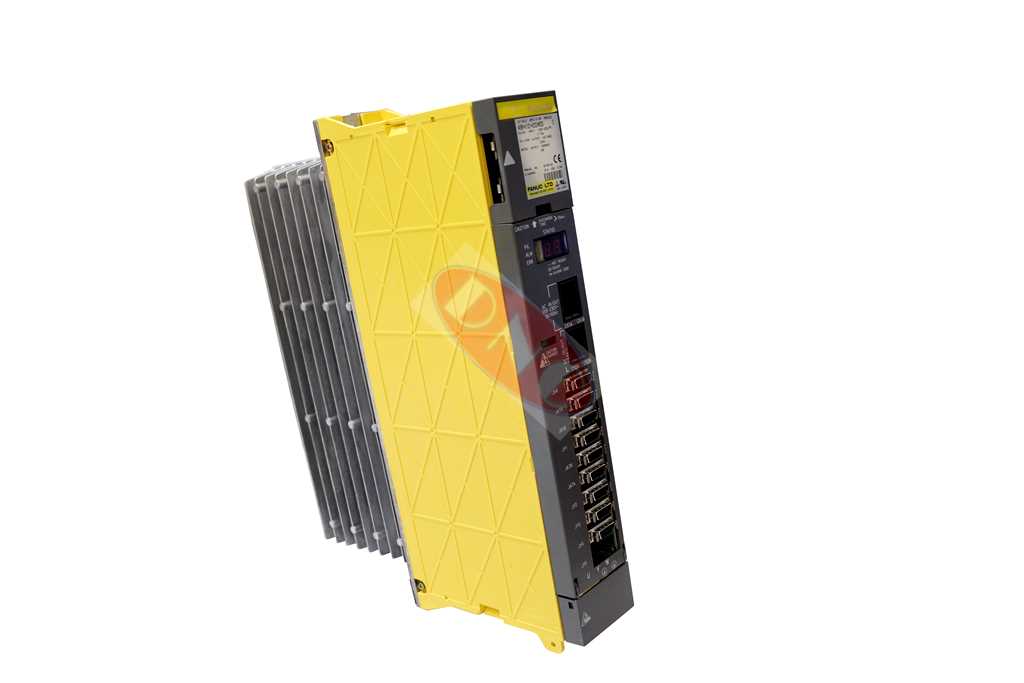

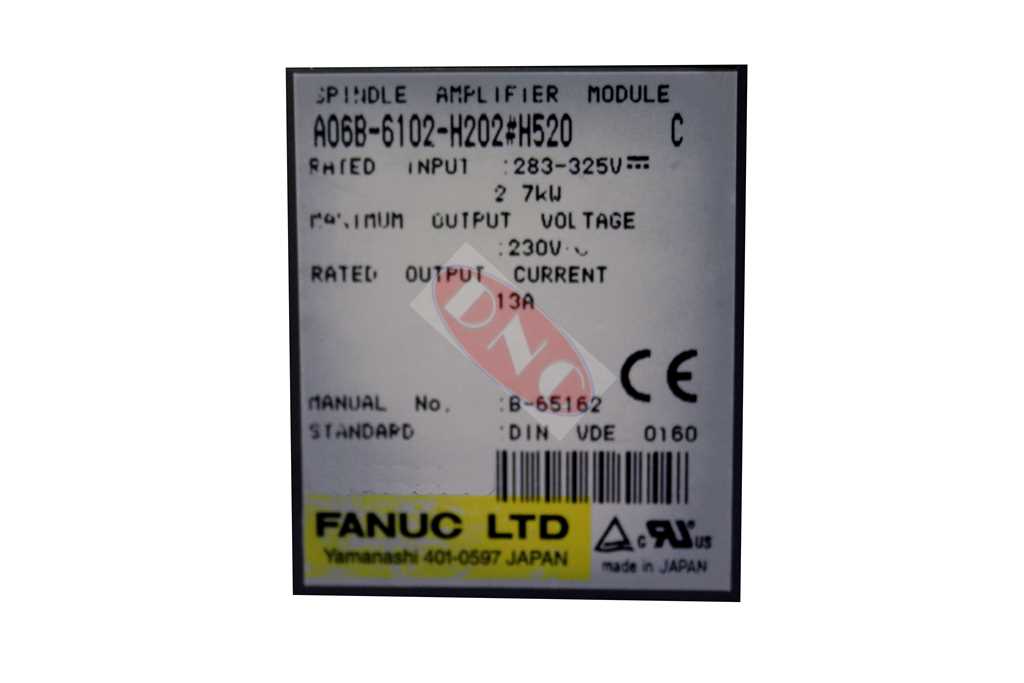

Fanuc A06B-6102-H202 spindle amplifier module is in stock. Belonging to the ALPHA series spindle modules; known as SPM-2.2 (Type 1) with software designation #H520. Listed as A06B-6102-H202#H520. As a result part of late 0-D, 0-F controlled and early series 16i/18i/21i systems accompanying FSSB servo amplifiers. Replacing the A06B-6078/6088 and all the software variations belonging to earlier series of amps.
DNC offer 6102 series amplifiers with the #H520 software on an exact swap basis. Rated at 2.2kW, driving either a high speed model 1/8000 ALPHA series motor. The amplifier contains power board A16B-2202-0680 and control PCB A16B-2203-0503. We do NOT supply the power board or the control board seperate.
We do supply transistor modules, pcb and clearup fuse and cooling fans (both internal and external).
Offering several services on these Fanuc ALPHA spindle amplifiers including exchange, outright sale, testing and fault diagnosis service and repair. At DNC we offer a 24 hour repair turnaround service on A06B-6102-H202#H520 spindle amplifiers. Backed by an extensive stock of 2.2kw amplifiers in stock.
Contact us on the phone or via email for prices and availability.
