A06B-6050-H001
Fanuc A06B-6050-H001 AC velocity control unit. The smallest single channel axis drive using analogue interface between itself and late system 6 or early 10 and 11 controls. This drive along with the rest of the 6050 series of AC servo amplifier unit is Fanuc’s first AC series of analog servo drives.

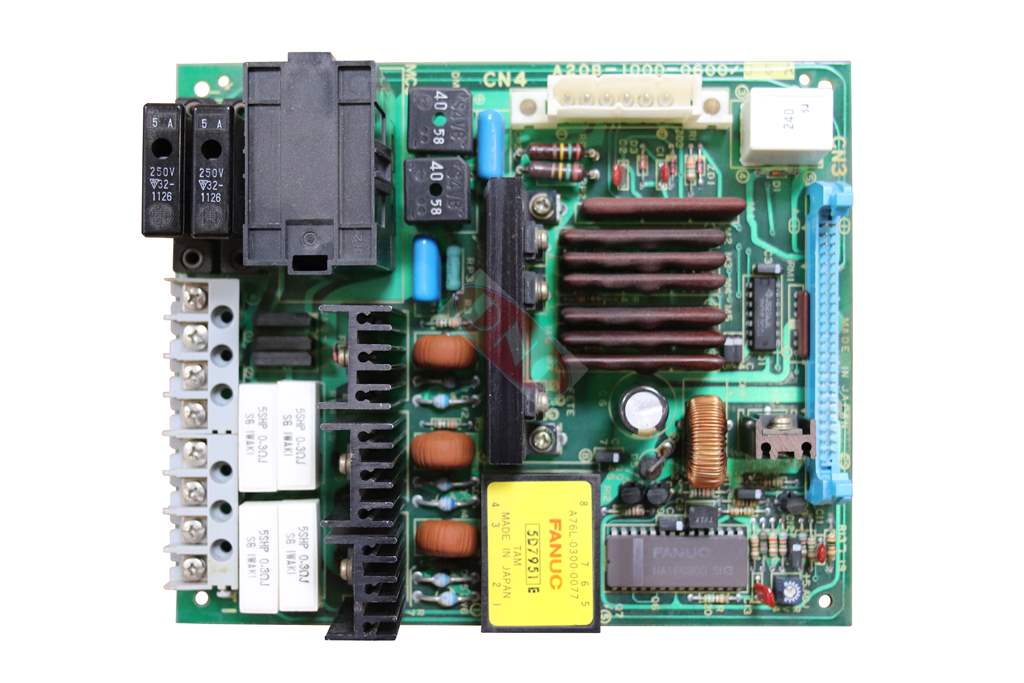

The H001 unlike the most of the 6050 series was built using two boards in a wiring/power PCB and a control PCB connected via ribbon cable housed in an anodised metal frame. Includes the power board A20B-1000-0600 and the digital control PCB A20B-1000-0590 (neither available seperate).
This tiny servo drive is found powering model 4-0 or 3-0 motors and found on EDM machines of their various types.
Carrying these drives in stock for over 20 years; there is not much we don’t know about them. Offering extensive testing, repair, rebuild capabilities. Our test and repair turnaound is 24 hours. If you require a A06B-6050-H001 faster; then take advantage of our stocked service exchange available to ship.
Unsure whether your drive is faulty then click on the proceeding link for information on AC axis unit alarms. A lot of our customers are CNC service engineers and we know many whom fix EDM machines with Fanuc controls. Contact us at DNC if you require further information on stock, prices, repair and testing options on Fanuc AC analog axis 4-0/3-0 drive.
