A06B-6058-H012
Fanuc A06B-6058-H012 AC servo amplifier unit. This S series digital servo amp is fitted upon various Fanuc RF Robots. Single axis servo drive interfacing to the CNC with PWM (pulse width modulated). Has a standard S series single axis control board; but the power section is setup for a robot 5RF AC servo motor.

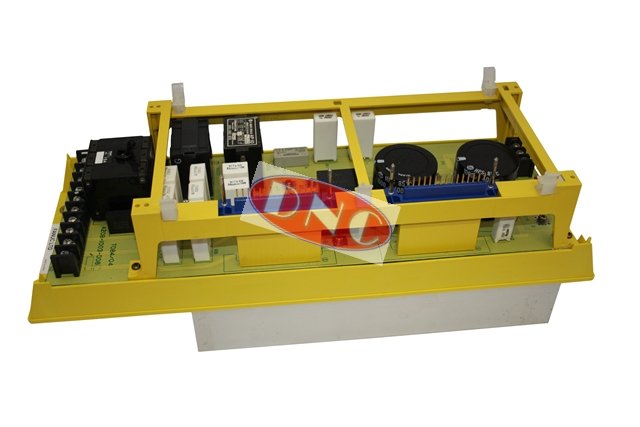

Similar to all of the 6058 series of servo amp; this drive can also be setup with internal or external regen; dependents on the demands of the motor configuration. Includes A20B-1003-003 wiring PCB not available seperate.
At DNC the A06B-6058-H012 is currently in stock. Available to order today via phone or email on an exchange basis. Alternatively we can offer same day testing and 24 hour turnaround repair service; if you are unsure the fault is the amplifier or something else on the machine.
If you want to check alarms on your drive to see whether they list drive related issues or point elsewhere please refer to our Fanuc alarms page for Fanuc AC servo amplifiers.
Contact us for further information regarding faults/alarms, exchange part availability, prices, test and repair/rebuild turnaround on this servo drive.
