A06B-6058-H025
Fanuc A06B-6058-H025 servo amplifier unit. This S series single channel digital servo amp is a late release of this 200VAC series of drives. Used to control high speed AV servo motors in the guise of 10S/3000 which we also support. Controlled by late digital zero model 0-B, 16 bit 0-C and early 15, 16, 18 controls.

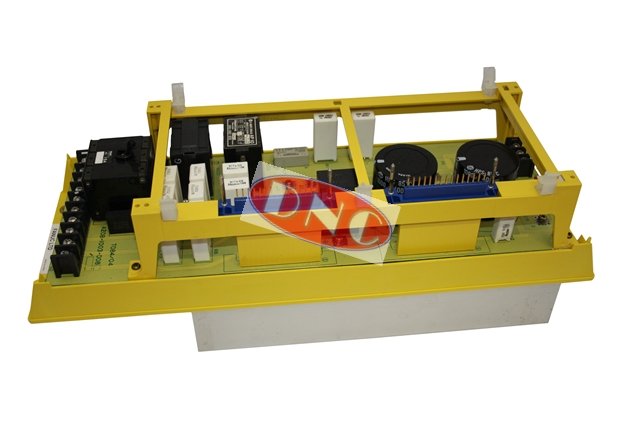

The H025 as part of the 6058 S series of amplifiers and motors s the first generation of Fanuc’s now infamous yellow plastic framed drives. In this case an yellow plastic frame with an aluminium base/heatsink with power components screwed too the power PCB A20B-1003-0084 mounted through yellow plastic frame too S series digital control PCB A20B-1003-0090.
The model 10S/3000 is available exchange or we can supply surplus outright shipping from our stocks today!
Offering extensive test and inspection facilities for this servo drive. Including cleaning, fault diagnosis for intermittent faults, replacement parts such as transistors and fuses. Unsure your 10S/3000 servo drive is at fault then check which LED is lit on the control PCB of the drive and consult our S series servo alarms page.
Contact us on +44 (0)1793 615356 for further information on stock, prices, clarifications for info listed on this page. Turnaround times for test and repair are dependent on the condition of your 10S/3000 servo unit.
