A06B-6064-H202

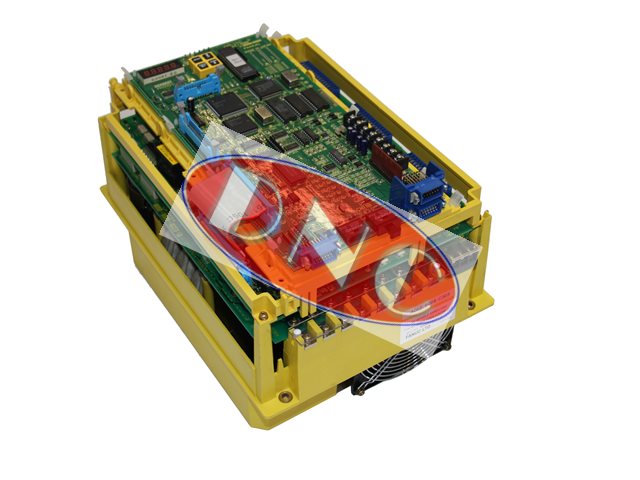

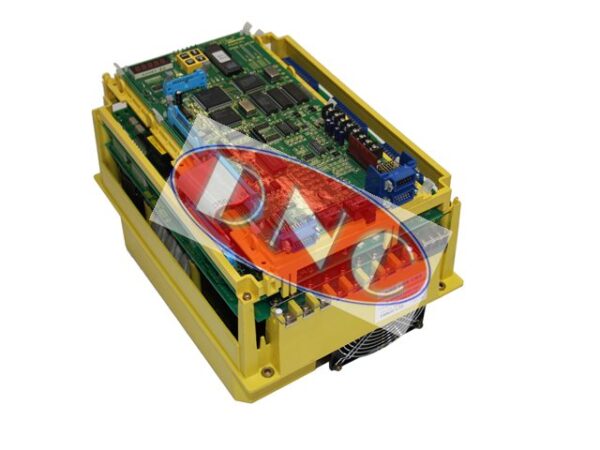

Fanuc A06B-6064-H202 AC spindle servo unit. As part of the serial series of AC spindle drive its one of the small yellow plastic frame drives at the time using the latest serial interface with 0-D and 16/18/21 controls. Part of the 3rd generation serial series its software A06B6064H202#H550 superceeding earlier serial serier with matched electrical ratings.
Not being the largest drive of the 6064 series the H202 is still powerful driving AC model 1.5S or 2S spindle motors. This drive is made up of several layers allowing for excellent thermal radiation.

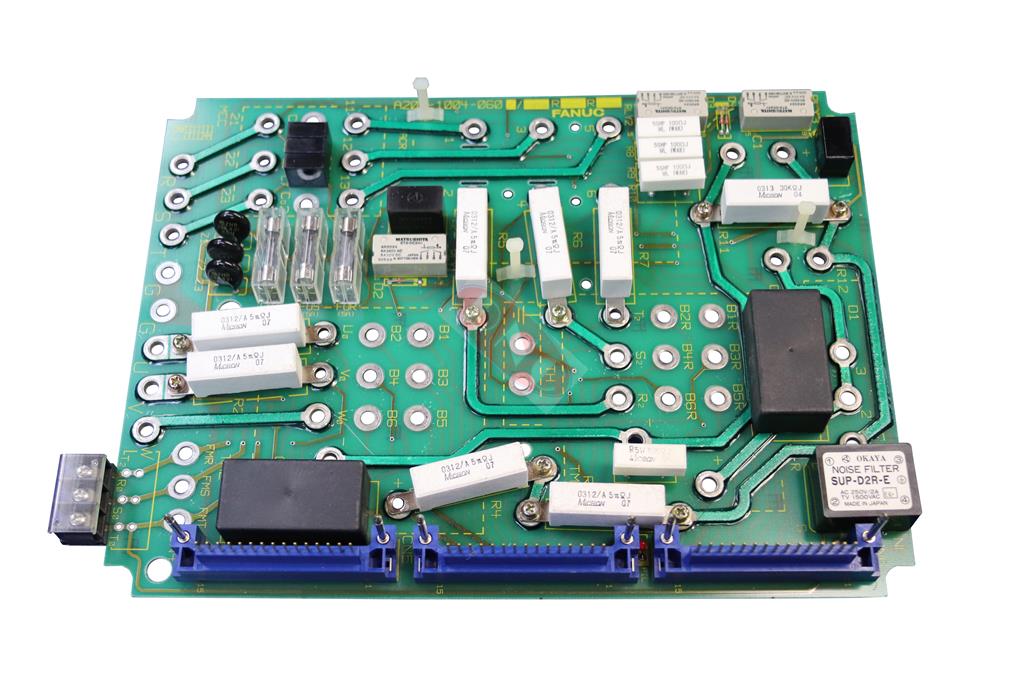

At the back is the power components such as capacitors, contactors, transistors on a large heatsink as well other high powered devices. Next is the wiring PCB A20B-1004-0600 (not available seperately) which directs the power to the blue connectors.

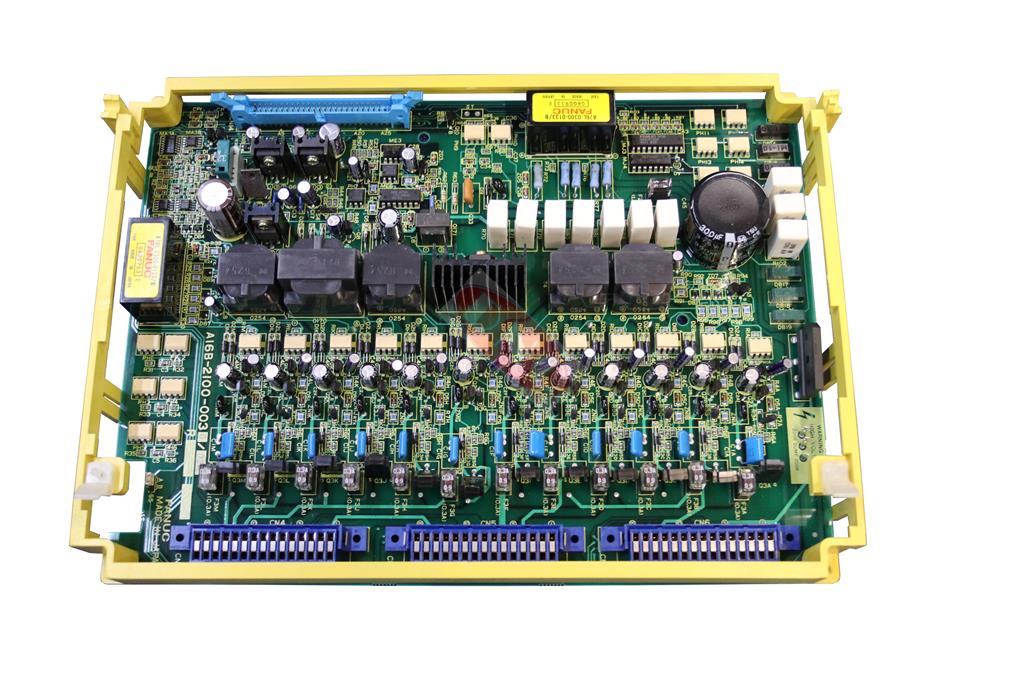

As a result these send voltages onto the firing circuit pcb (A16B-2100-0030) with bridge rectifiers, smaller transistors and opto’s, etc. Working in combination with A16B-2201-0010 spindle control pcb (or the logic and communications board). Together these make up the A06B-6064-H202 AC spindle servo unit.
At DNC we have supported these A06B6064H202#H500 serial spindle drives since our inception. As a Fanuc specialist repair facility we have repaired hundreds of 6064 series drives over the years and supplied this model to many well known precision machining shops.
Call for prices on exchange units, which can ship out today. If you are unsure if your 2kW unit is faulty then check our Fanuc serial spindle alarms page or contact us.
