Fanuc A06B-6064-H306 Spindle Amplifier Drive. As part of the serial series of AC spindle drive its one of the small yellow plastic frame drive using the latest serial interface with 0-D and 16/18/21 controls.
As this drive is 3rd generation serial series its software A06B6064H306#H550 it superceeds earlier AC serial spindle drives assuming matched electrical ratings.
Not being the largest drive of the 6064 series the H306 is still powerful driving AC model 6S or 8P spindle motors. For bigger motors, Fanuc produced older style anaodized serial spindle amps rated up to model 60S. This drive is made up of several layers allowing for excellent thermal radiation.

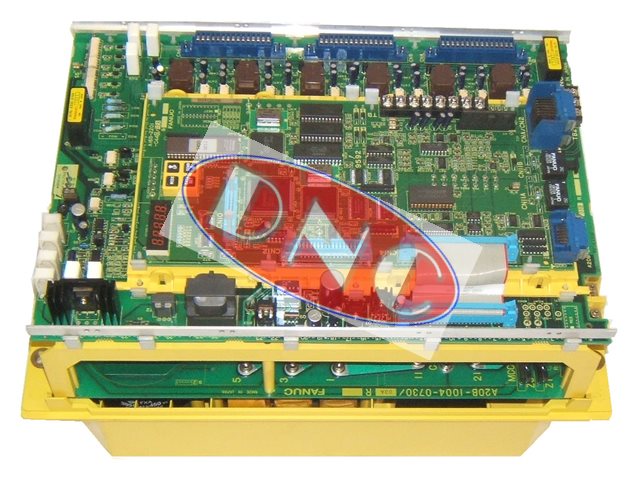

At the back is the power components such as capacitors, contactors, transistors on a large heatsink as well other high powered devices. Next is the wiring PCB A20B-1004-0730 (not available seperately) which directs the power to the blue connectors.
As a result these send voltages onto the firing circuit pcb (A20B-2000-022x) with bridge rectifiers, smaller transistors and opto’s, etc. Working in combination with A16B-2201-0440 spindle control pcb (or the logic and communications board). Together these make up the A06B-6064-H306 AC spindle servo unit.
At DNC we have supported these serial spindle drives since our inception. As a Fanuc specialist repair facility we have repaired hundreds of 6064 series drives over the years and supplied this model to many well known manufacturers in the Automotive and Aerospace industries. Currently we have this drive in stock; when we don’t we can rely on group stocks to back us up.
Call for prices on exchange units, which can ship out today. If you are unsure if your unit is faulty then check our Fanuc serial spindle alarms page or contact us.
