A02B-0087-C203

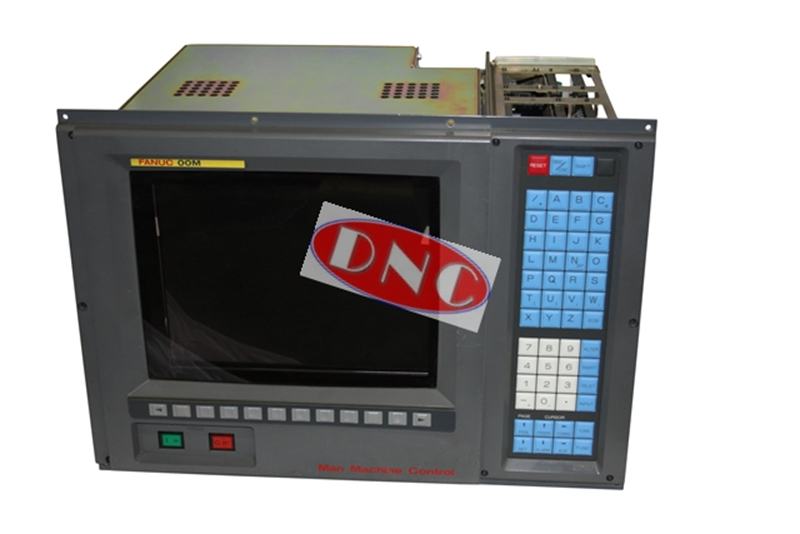

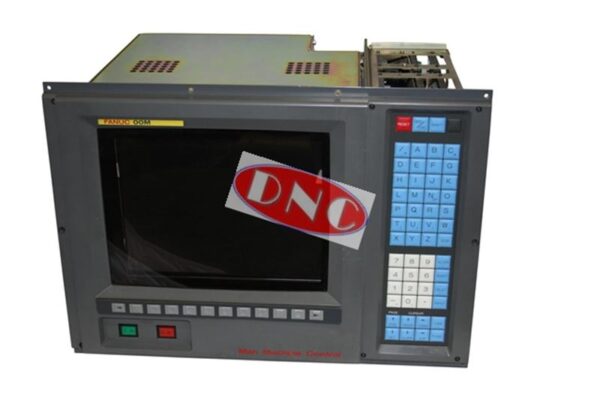

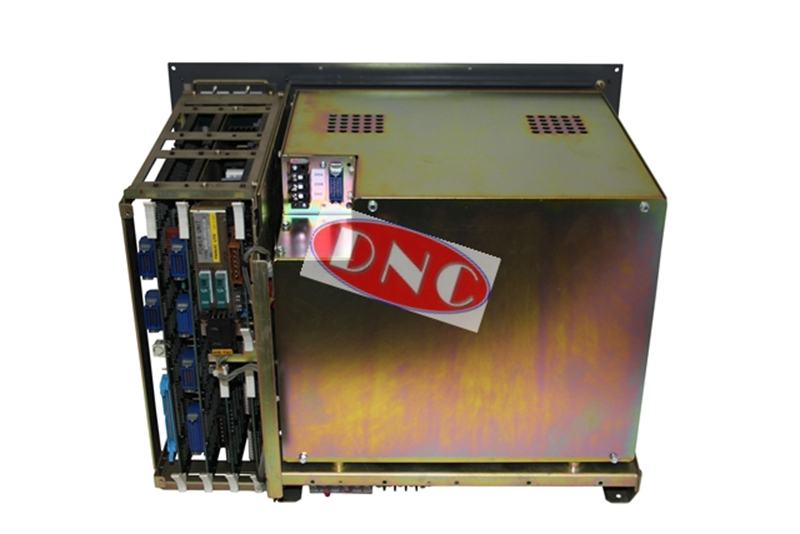

Fanuc A02B-0087-C203 CRT/MDI Unit. This unit comprises a 14 inch and CRT/MDI section with a built in MMC man machine control system, A61L-0001-0074#A CRT monitor, PSU: A20B-1001-0930, A20B-1002-0710, A20B-1002-0700, A20B-1001-0870, A20B-1001-0880 and lastly A98L-0001-0555#A02 membrane. This crt/mdi is for the 00P and 00M controls, running Amada punch press machines. This MMC graphics section has 1MB ROM file and 128KB ram file.
DNC do carry the complete CRT/MDI unit as well offer the individual components that make up the MAN MACHINE CONTROL 00M panel such as the CRT monitor, keyboard, power supply unit listed above all of which are in stock. Don’t
DNC also supply a new DNC74#A to replace the original Matsushita CRT monitor fitted in the A02B0087C203.
