A06B-0227-B300

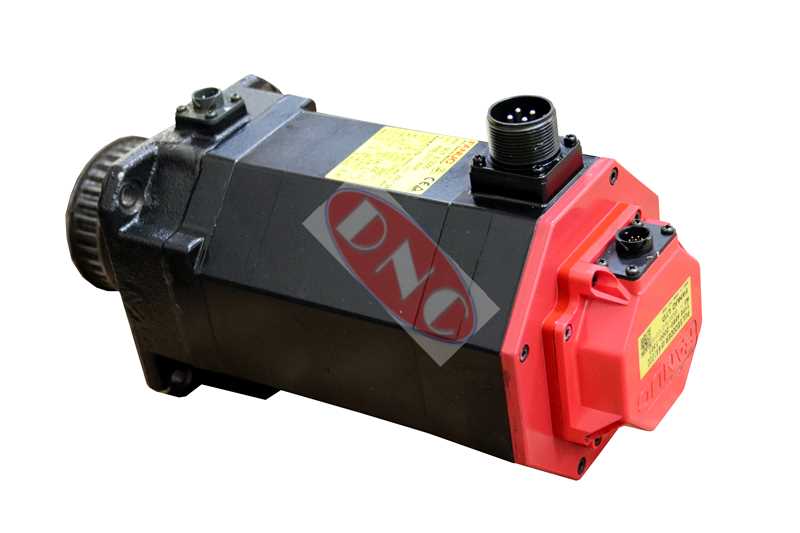

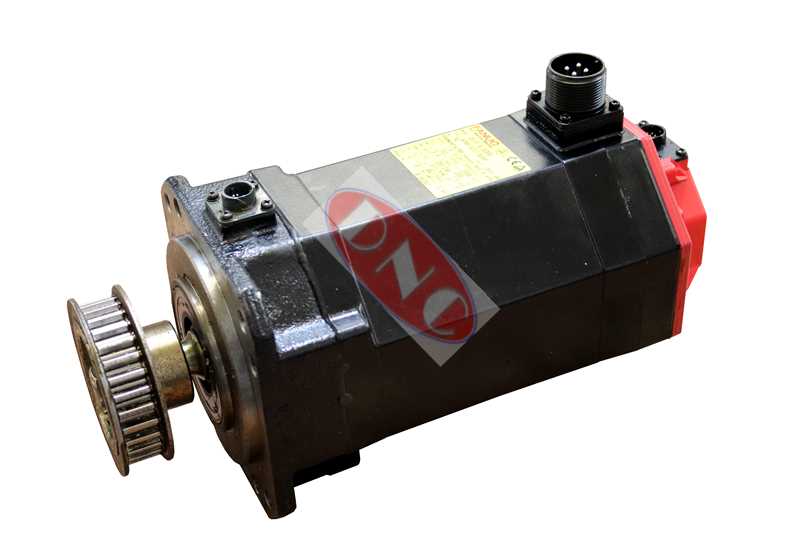

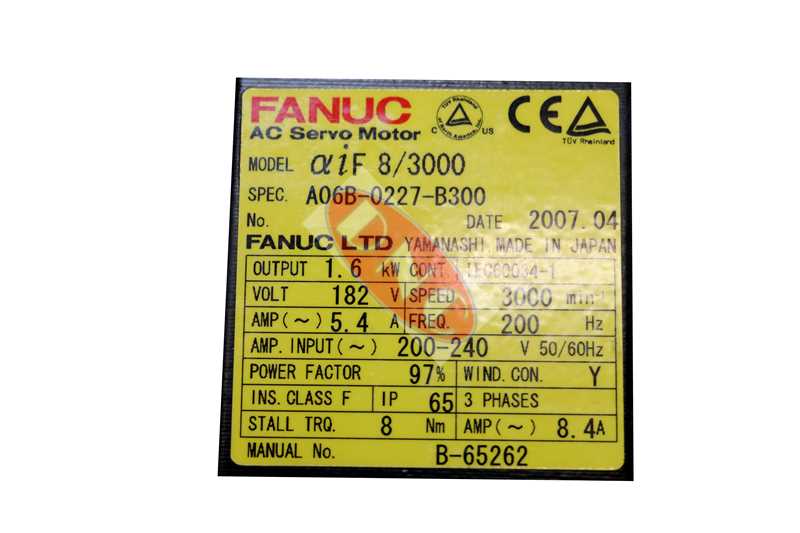

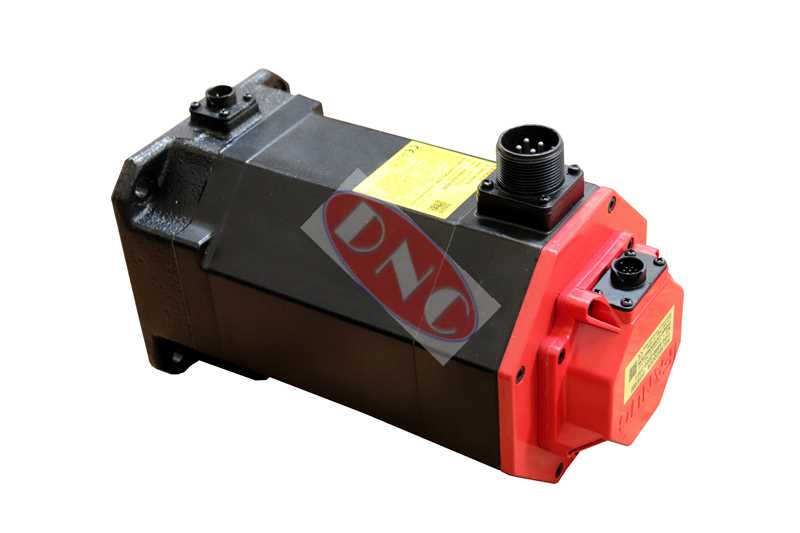

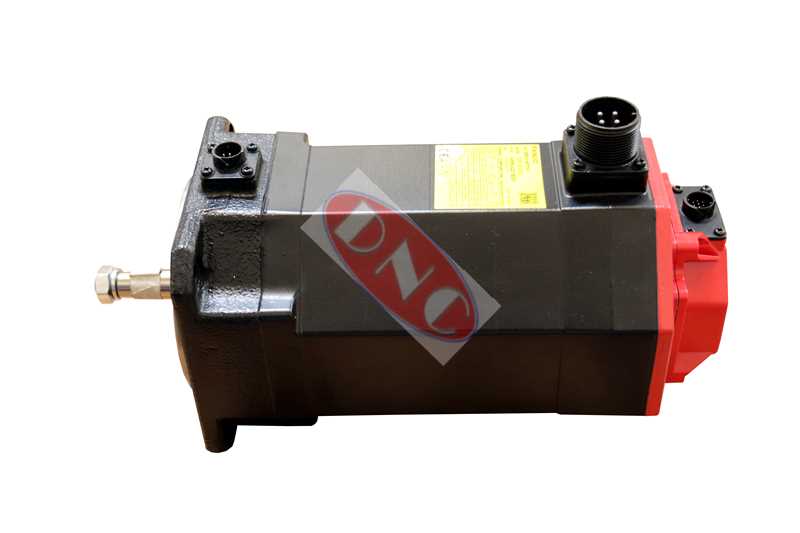

Fanuc A06B-0227-B300 ALPHA model aiF8/3000 servo motor. This motor series stats are: 1.6kW, 8Nm TRQ, 8.4 Amp, 3 phase 182V @ 200Hz, Max 3000 RPM. Physically the motor has a tapered shaft with 24vdc brake and standard oil seals fitted.
This motor is fitted with an ALPHA i absolute encoder a1000iA series. The motor is usually available either exchange or surplus for your CNC machine tool. If not available then full testing fault diagnosis and repair services are available and so is a full backup Fanuc Drive service, if the motor is not faulty.
Warranty for all A06B0227B300 varient aiF8/3000 motors is 12 months !
