A06B-0239-B400

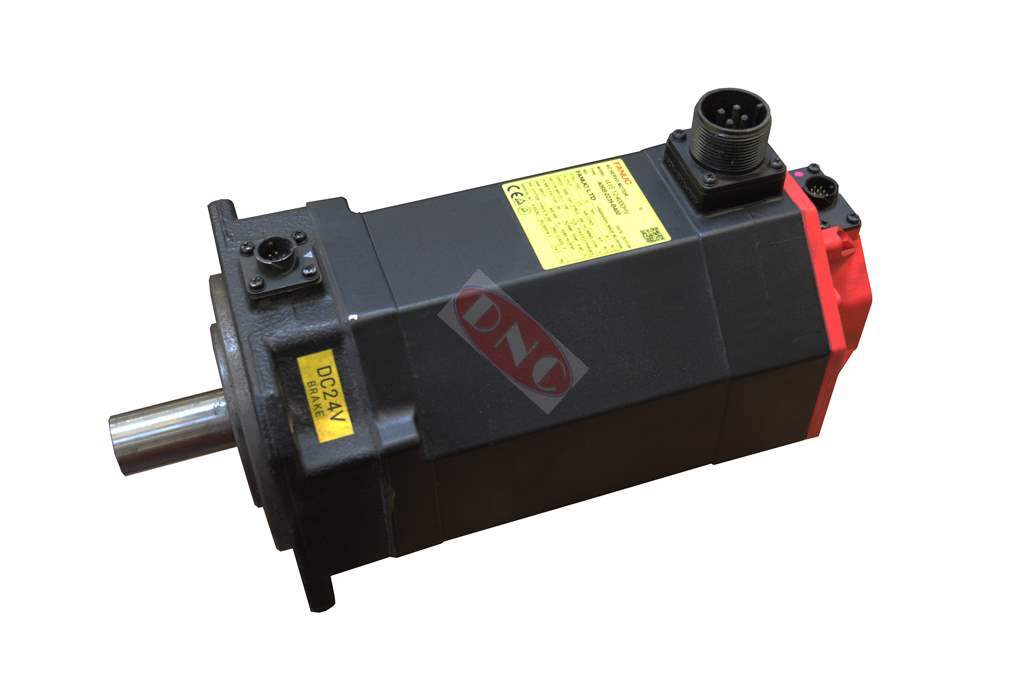

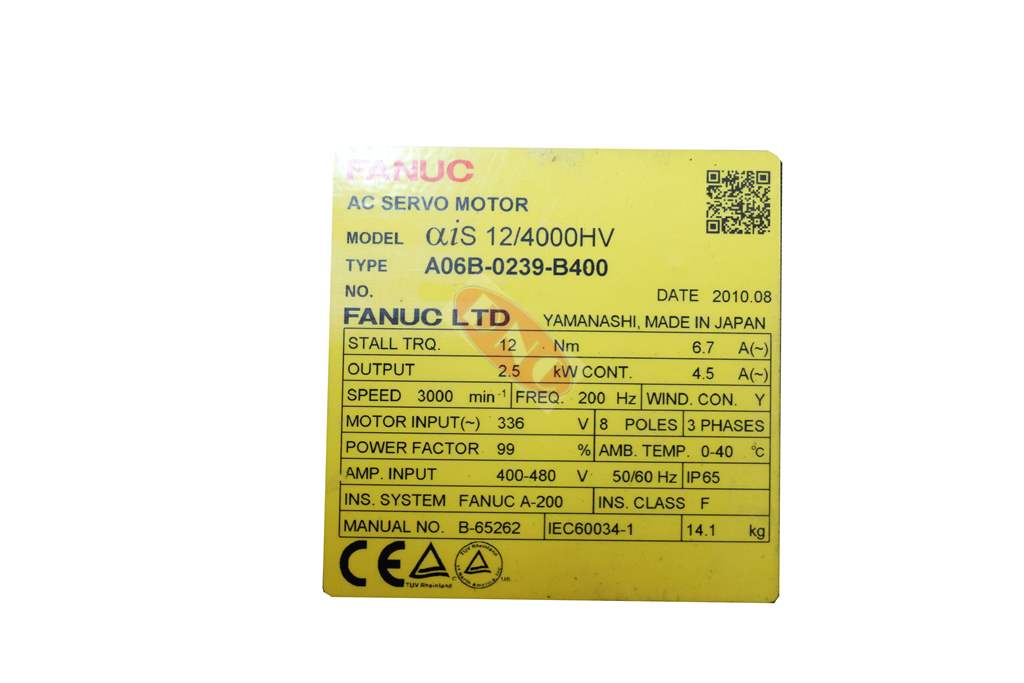

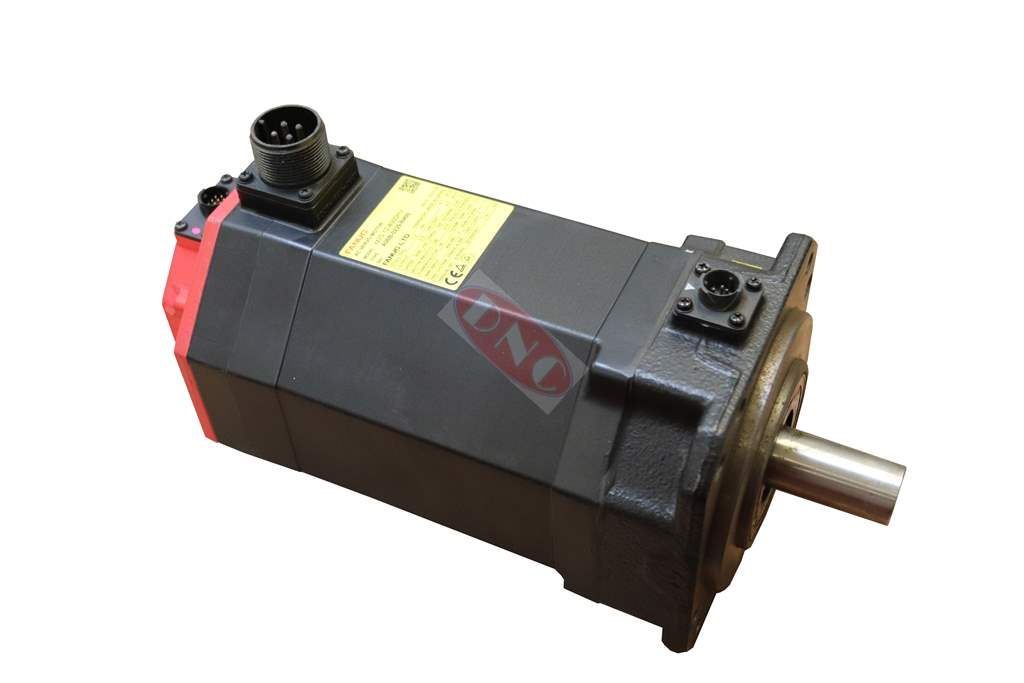

Fanuc A06B-0239-B400 ALPHA model a12/4000HViS servo motor. This 200VAC voltage motor series stats are: 2.5kW, 12Nm TRQ, 6.7 Amp, 3 phase 336V @ 200Hz, max 3000 min-1 RPM motor. Fitted with a straight shaft, standard oil seals, 24VDC brake and absolute encoder.
This A06B0239B400 motor is fitted with an ALPHA i absolute encoder a1000iA series. The motor when in stock is usually available on exchange basis. If not in stock then we offer fast test and repair sercices on this motor.
Our repair turnaorund is normally 24-48 hours unless a rewind is required. We normally stock 24VDC brake systems, bearings and everything else we need to repair, rebuild these motors; except for snapped shafts. That will require a replacement motor.
If you are unsure whether its the motor, drive or CNC causing the problems then consult our Fanuc aiSV servo amplifier alarms page. We can test the motor, associated servo amplifier and the CNC if required.
Warranty for all aiS12/4000HV motors is 12 months !
