A06B-0241-B100

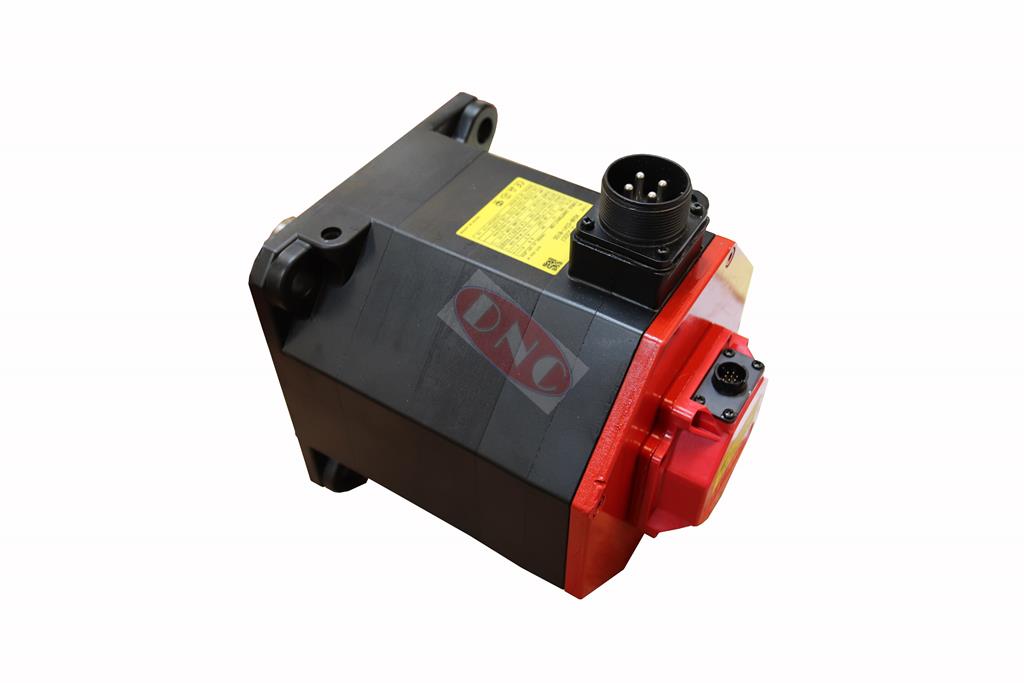

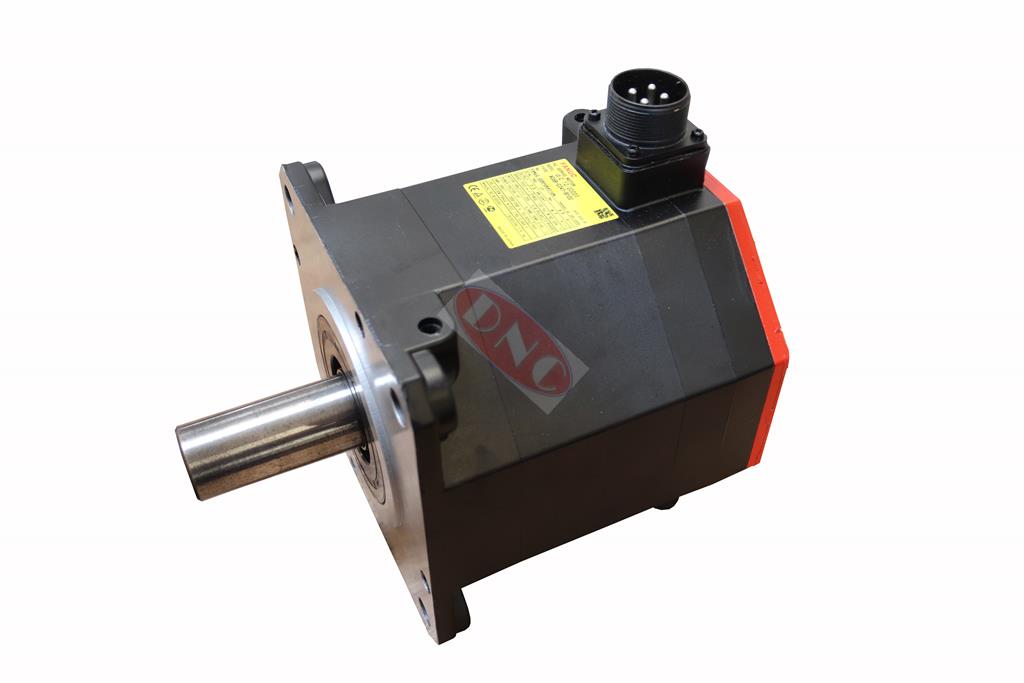

Fanuc A06B-0241-B100 servo motor. This ai model 12/3000i motor series electrical specifications are: 2.3kW, 12Nm stall torque, 133Hz with a maximum rotational speed of 2000 RPM. The motor has a straight shaft (no key and no brake) with standard oil seals fitted.
This motor is quite rare and fitted with 20A ai servo amplifier modules. The motor has a ALPHA i absolute encoder a1000iA series as a feedback device to the CNC. The motor is available either exchange, new (if stock permits), surplus for your CNC machine tool (if stock permits).
Full rewind, repair and rebuild services are available on this A06B-0241-B100 servo motor. Turnaround times range from 24 hours to 7 working days for rewind; all repair work must be discussed/agreed upfront for turnaround times to be honoured. Further at DNC we also carry the matching Fanuc ALPHA i series servo modules and most of the 200VAC ai series amplifiers.
Warranty is 12 months on all exchange and repaired Fanuc motors including the aC12/2000i AC servo motor.
