A06B-0245-B500

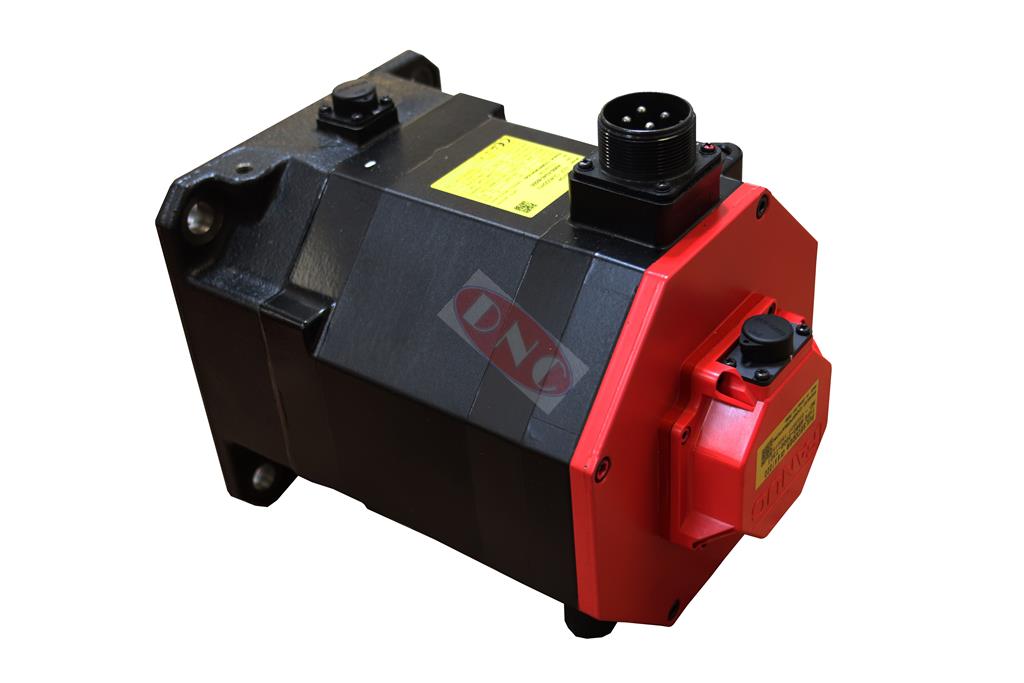

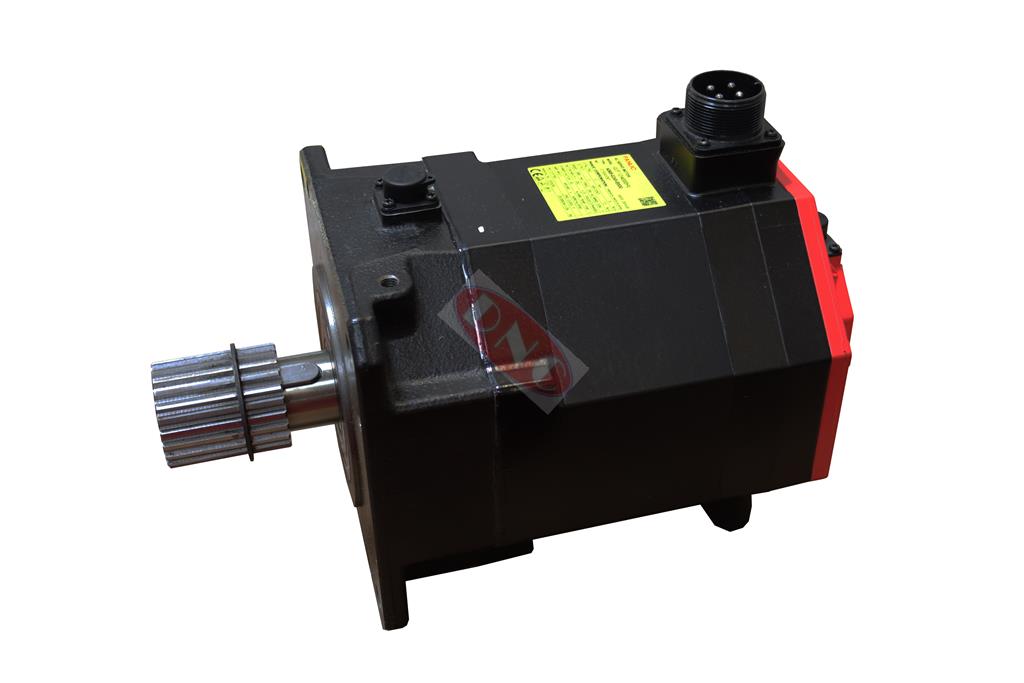

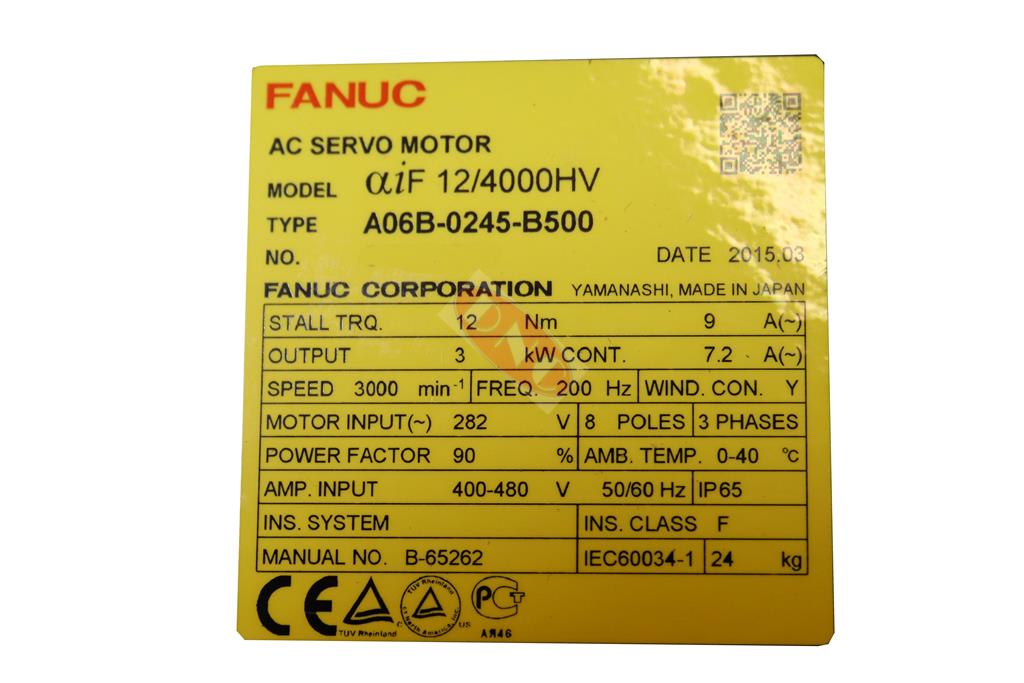

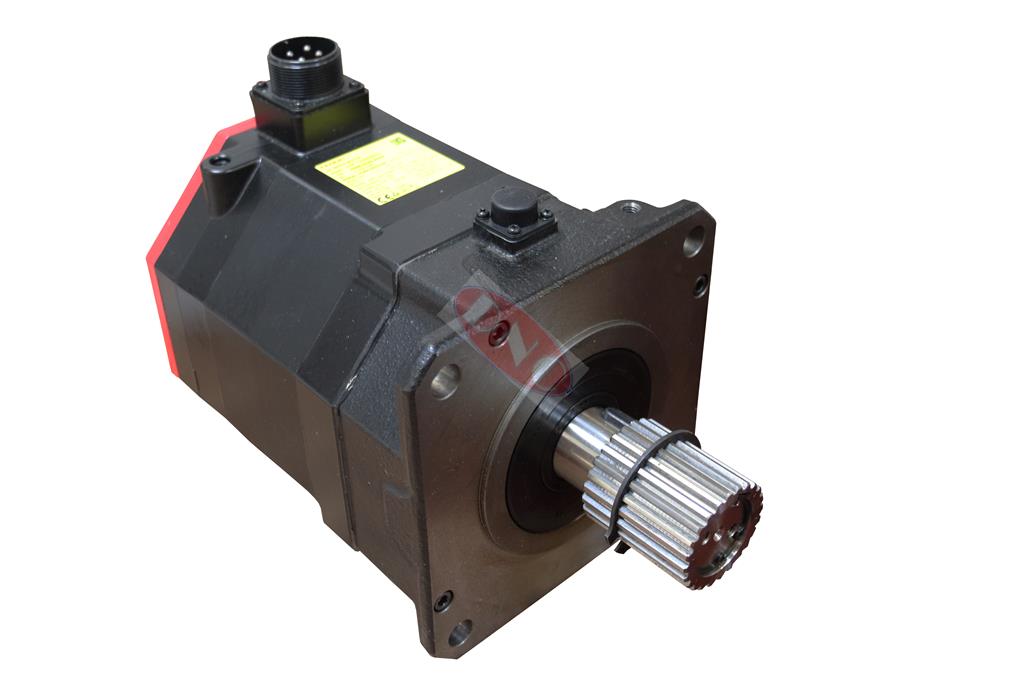

Fanuc A06B-0245-B500 ALPHA model aiF12/4000HV servo motor. This motor series stats are the following: 7.5kW; 12Nm TRQ, 9 Amp, 3 phase 282v @ 200Hz, max speed 3000 rpm. Motor has a straight shaft key, 90V brake fitted, with ferrit magnets and part of the high voltage 400VAC ai series of drives and motors.
This motor is fitted with an ALPHA i absolute encoder aiA1000 series. The motor is available from DNC either exchange, new (if stock permits), surplus for your CNC machine tool, testing fault diagnosis and repair services are available and so is a full backup Fanuc Drive service, if the motor is not faulty.
Warranty for all aiF12/4000HV motors is 12 months !
