A06B-0266-B100

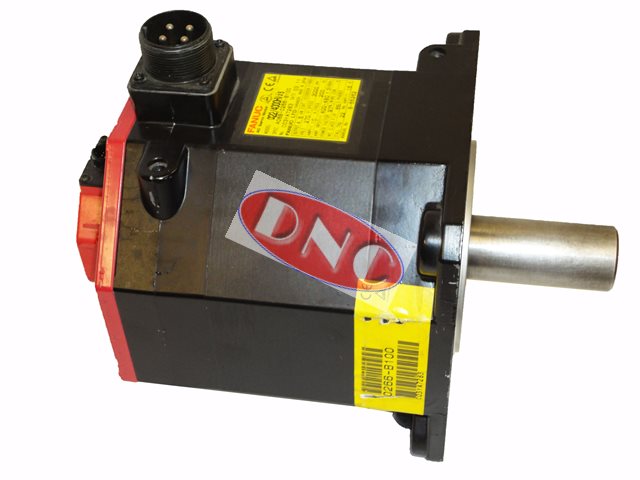

Fanuc A06B-0266-B100 servo motor. These ai model a22/4000HViS or ai22/4000HV are high voltage (400VAC) series of motors belonging to the Fanuc’s HV family of motor and servo amplifiers. Electrically the motor is rated at 4.5kW (22Nm TRQ) 16A 3PH 270V at 200Hz with max usuable rotational speed of 4000 rpm. Physically the motor is flange mounted with a straight shaft and absolute 1000i series encoder.
There are two varients of this motor. Denoted by the oil seals. The standard rated motor is A06B-0266-B100 model a22/4000HVis; whereas the IP67 rated sealed motor is denoted by A06B-0266-B100#0100 model name ai22/4000HV.
At DNC we carry both versions of this motor. We offer many different services from service exchange in which we supply fully refurbed or new motor with 12 month warranty for economically repairable and non interfered with motor. Outright sale which we simply sell you a new or refurbished motor; backed by 12 month warranty. Lastly we offer testing and repair facilities.
At DNC we have built our own closed loop testing systems and can put a motor such as this through its paces. Not only can we do standard electrical checks and measure encoder outputs using the mitchell encoder machine. We can then connect it to a Fanuc drive and system, and see if it tests good. If not then we can effectively rebuild the motor including strip downs, rewinds, replacement parts such as bearing sheilds, encoder, bearings and much more. We can offer a 24 hour Fanuc motor repair turnaround service for motors not in stock!
Regardless whether you want exchange, surplus or your A06B-0266-B100 motor repaired all are backed by 12 month warranty. Contact us at DNC to find out more about supply options, testing, repair and prices.
