A06B-0845-B201

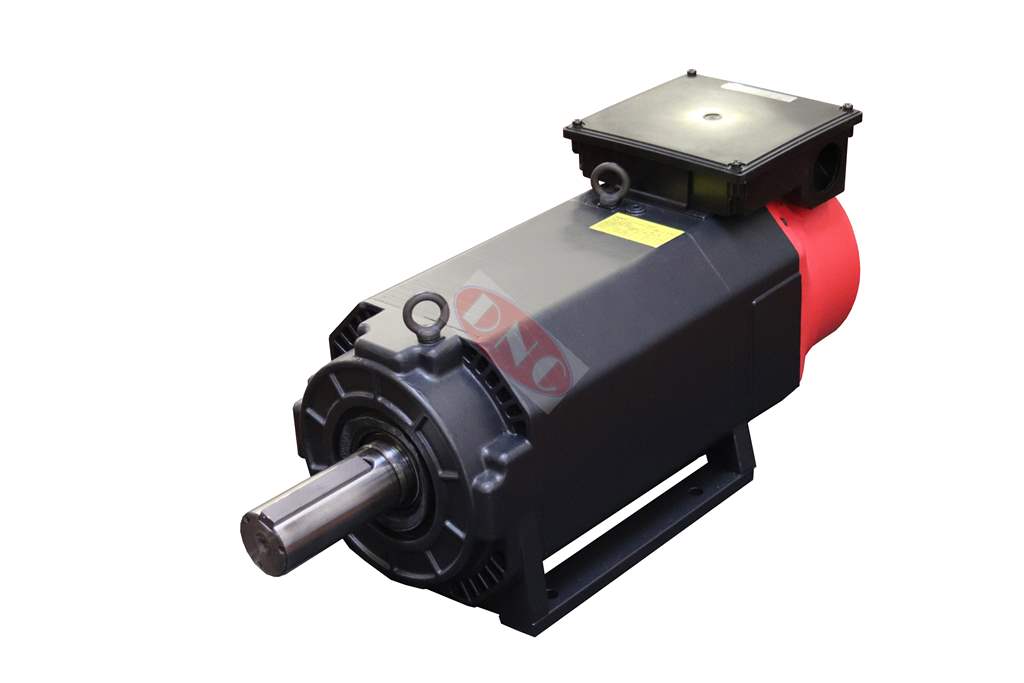

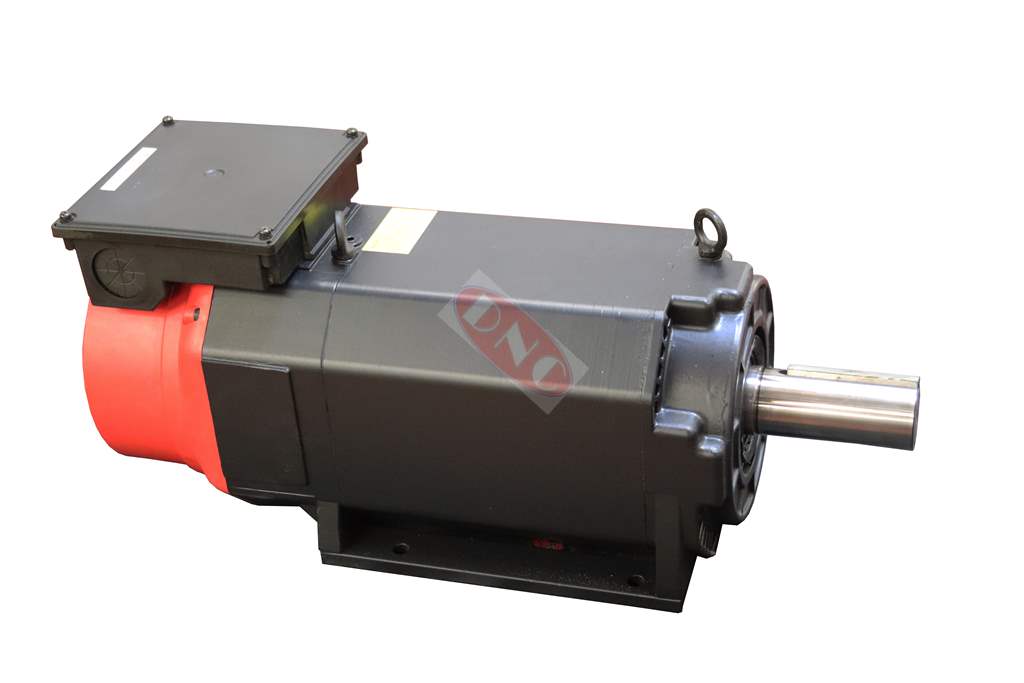

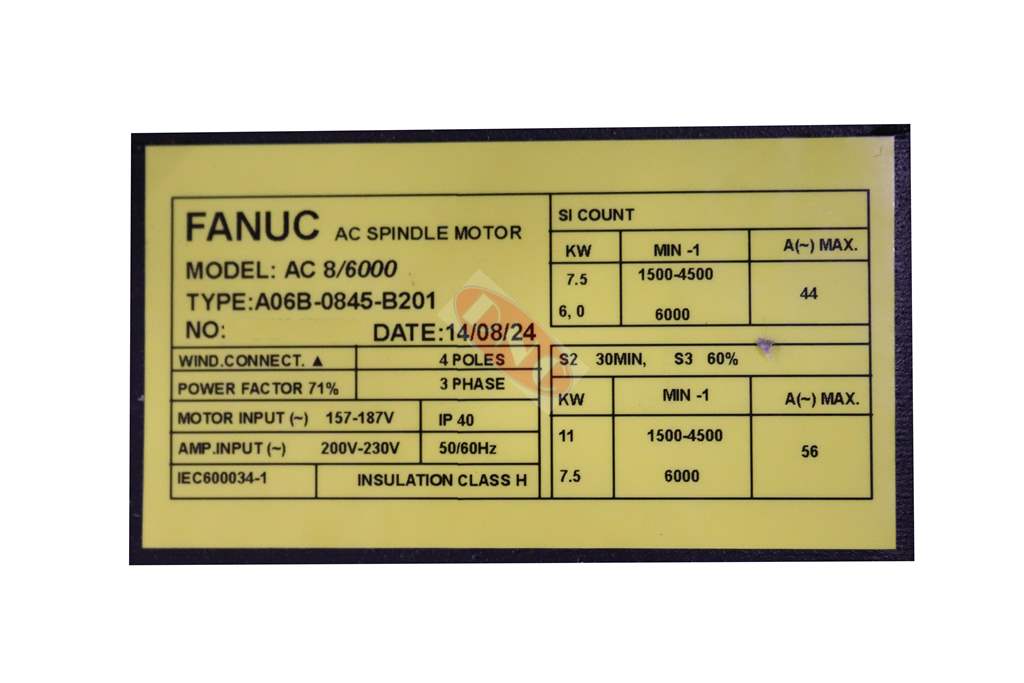

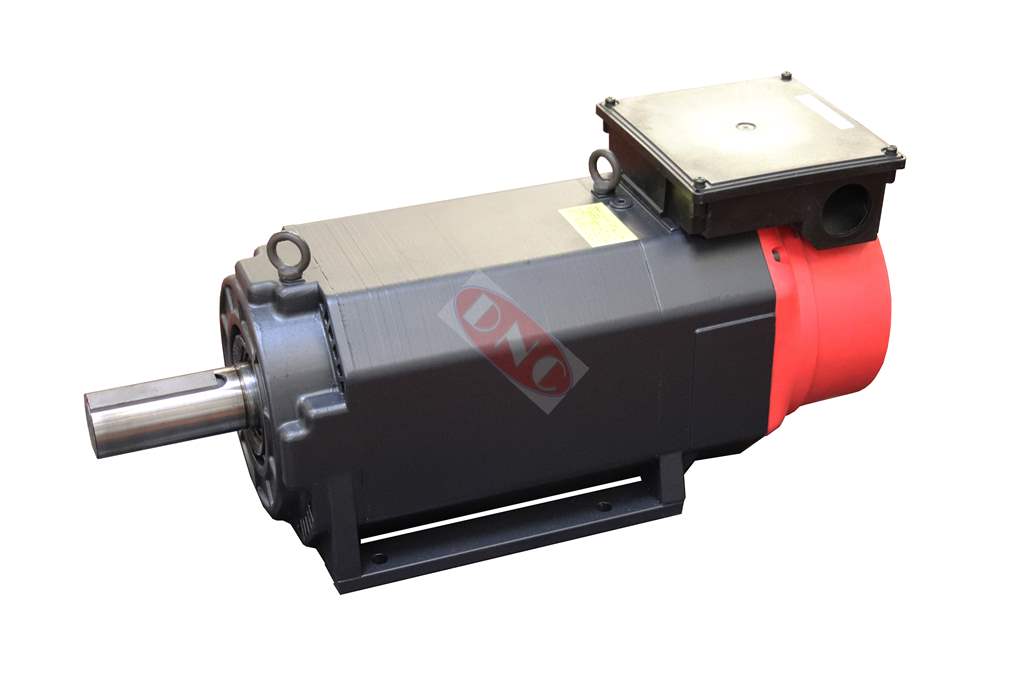

Fanuc A06B-0845-B201 ALPHA model c8/6000 Spindle Motors (FLANGE). Info for this motor: Rated at S1 cont: 7.5kw between 1500-4500 rpm, and 4.5kw @ 6000 rpm – Max 44 amp; S2 30min Cont. 13kw between 1500-4500 rpm, and 7.5kw @ 6000rpm – Max 63 Amp – 3 phase – 4 pole class H insulation IP54, 149-214V flange mount with straight KEYED shaft and forward exhausting fan.
This A06B0845B201 motor from the Fanuc aC8/6000 Series AC spindle motor range is fitted with a standard AC ALPHA spindle feedback. This allows for serial spindle controllers and CNC’s to get the most accurate feedback from the motor. The motor is currently not in stock.
Our services for this motor (assuming no stock) are rebuild, rewind, repair and testing facilities. Warranty for all aC8 spindle motors is 12 months.
If you are looking for ALPHA spindle modules (click here).
