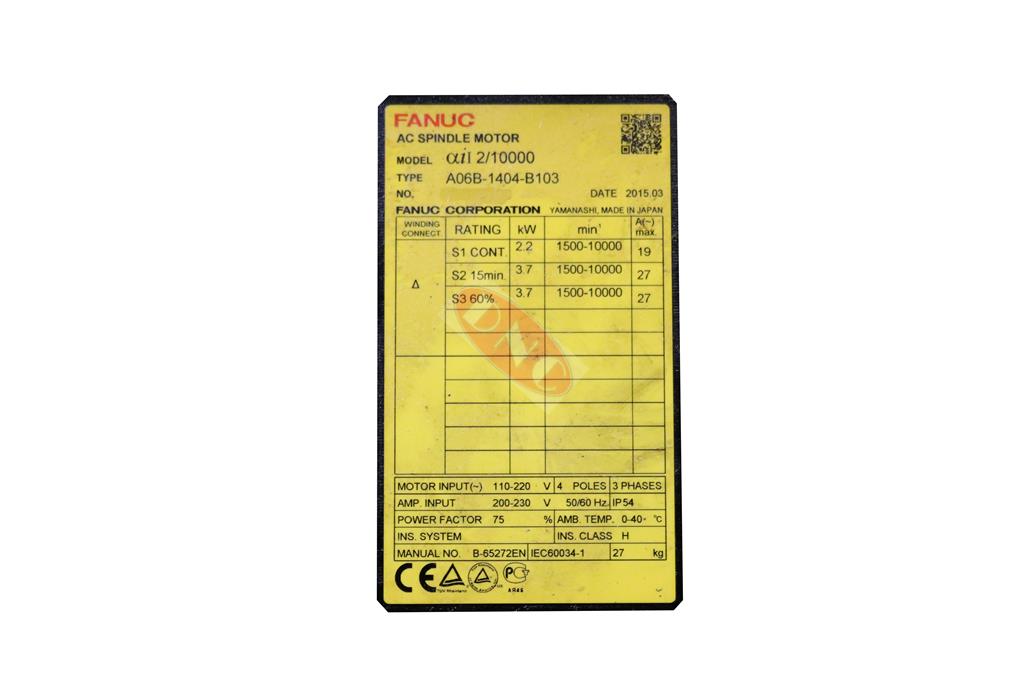

A06B-1404-B103 label

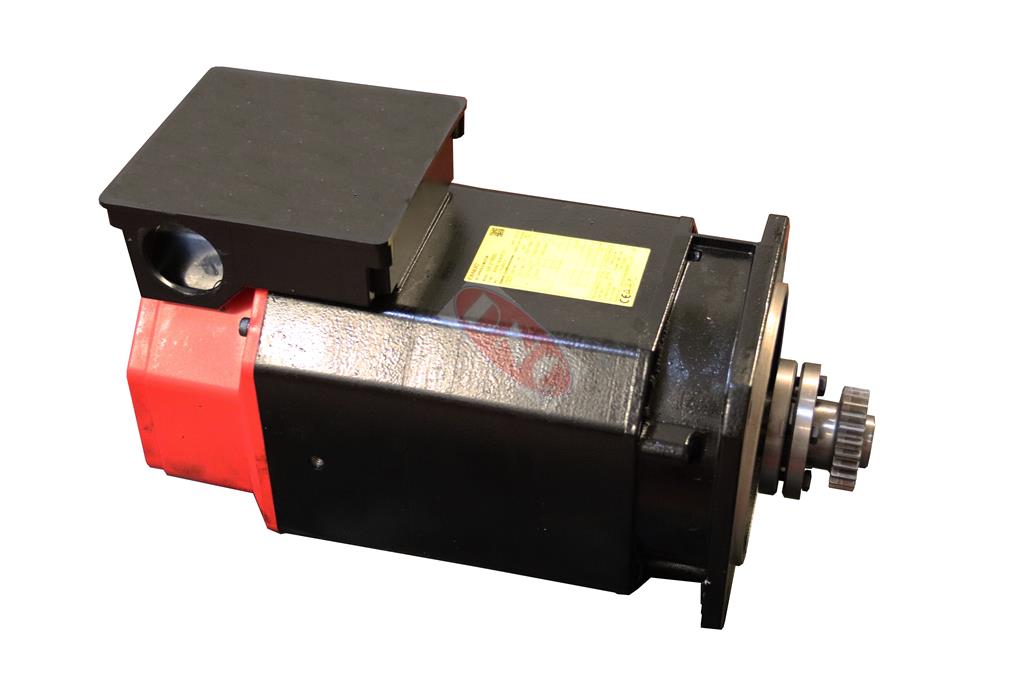

A06B-1404-B103 - Image 3

A06B-1404-B103

FANUC A06B-1404-B103

  • ALPHA i spindle motor
  • Model aiL2/10000, Flange, Rear EXH, MZi
  • Repair, rebuild, rewind, exchange
  • 12 month warranty on all ai motors.

A06B-1404-B103

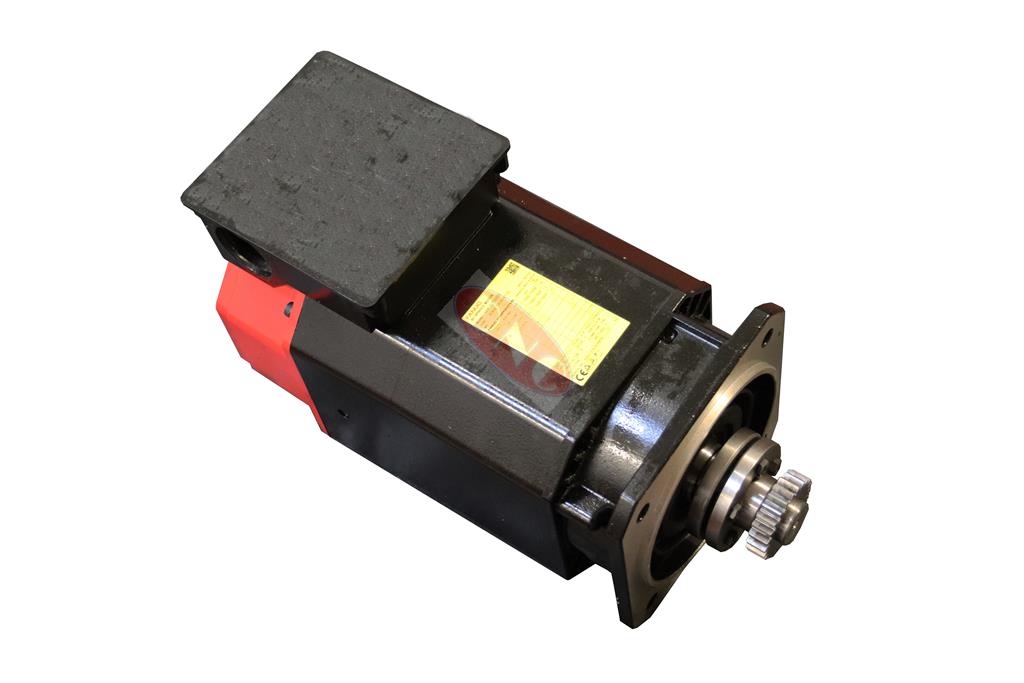

Fanuc A06B-1404-B103 spindle motor. This aiL2/10000 series of motor has an electrical rated output of S1 CONT. 2.2; S2 15min 3.7 and S3 60% 3.7kW all running min 1500~10000 rpm. The motor is flange mounted with straight shaft and rear exhausting cooling fan for being mounted on the end of the machine.

This aiL2 motor is fitted with an MZi sensor for speed and positional feedback. This motor normally runs with earlier 6141 and 6142 series amps or the latter 6220 amplifier generation.

Controlled from late generation 0i-C, 0i-D or 3xi CNC control series. DNC offers numerous services upon ALPHA i spindle motors, including inspection, diagnostic with our CNC test rigs, rebuild, rewind, repair and lots more to get your motor back into a top notch refurbished condition.

If A06B-1404-B103 motor is in stock, then exchange is also available. Regardless warranty for repair, rebuild, exchange or surplus of aiL2/10000 series spindle motors supplied or services is 12 months.
