A06B-1428-B103

FANUC A06B-1428-B103

  • aiL12/10000 (hi-speed) spindle motor
  • SPECIAL with Ceramic Bearings
  • Repair, rewind, rebuild.
  • Testing and fault finding.

A06B-1428-B103

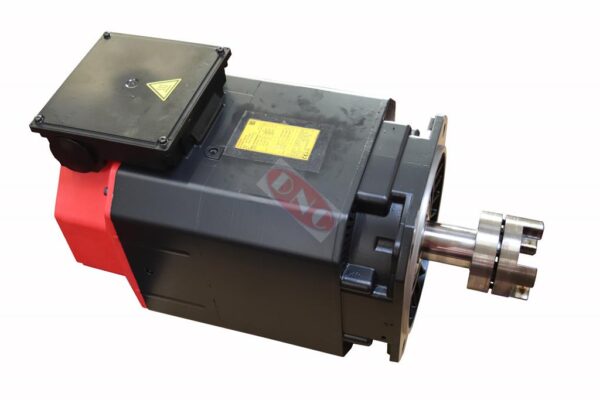

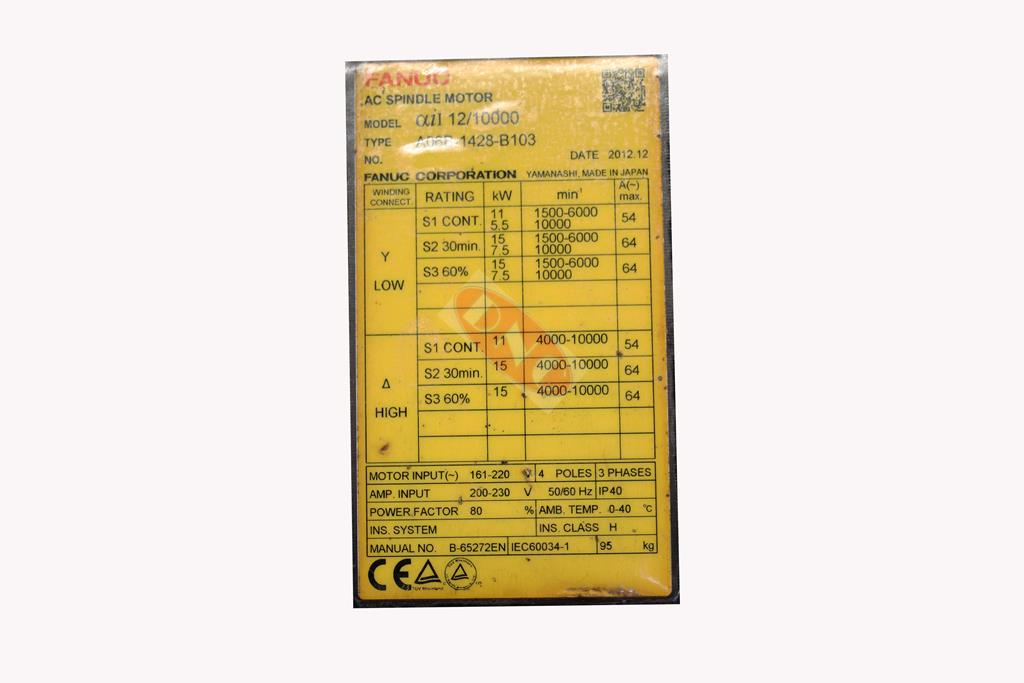

Fanuc A06B-1428-B103 spindle motor. This AC spindle motor has the following rating: S1 (continuous) 11kW @ 1500-6000 (43A), 5.5kW @ 10000; S2 (30-min) 15kW @ 1500-6000 (63A), 7.5kW @ 10000 rpm with a straight shaft, rear exhausting fan and flange mounted.

This A06B-1428-B103 motor from the Fanuc ALPHA i spindle motor range is fitted with Mi spindle feedback for late 614x series spindle amplifier drives running off Fanuc 0i-T/M or 3xi controls. As the bearings inside this motor are ceramic manufactured for Fanuc solely. Normally this motor is not available for exchange; as a result of being a high speed special. We offer inspection, repair / rebuild and testing are available at the moment.

DNC offer a warranty for all aiI12/10000 of 12 months. Contact us for more information on services offered and prices.
