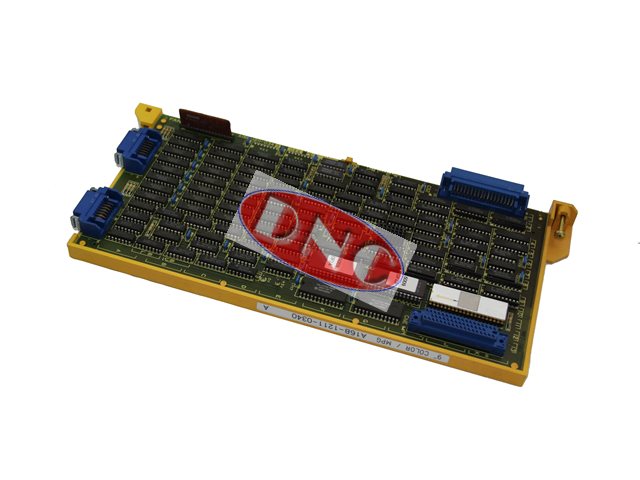

A16B-1211-0390
Fanuc A16B-1211-0390 Graphic Board is the hi-res 0-M / 0-T video driver Board for the 0-A and 0-B controller. The 0390 drives colour 14 inch CRT given additional on-screen editing functionality allowing machining alterations, etc. Standard 0-B configurations do have on main Board graphic drivers for basic MT graphics. This peripheral Board though high resolution allows lots more. This particular PCB is non surface mount, and was never superseded by any replacement – very rare Board found on large or more exotic machine tools.
DNC offer a full service for the A16B12110390 graphics driver Board, including testing and repair of the GRP video Board for the 0M/0T/0P/0G control system.
