A16B-2200-0220

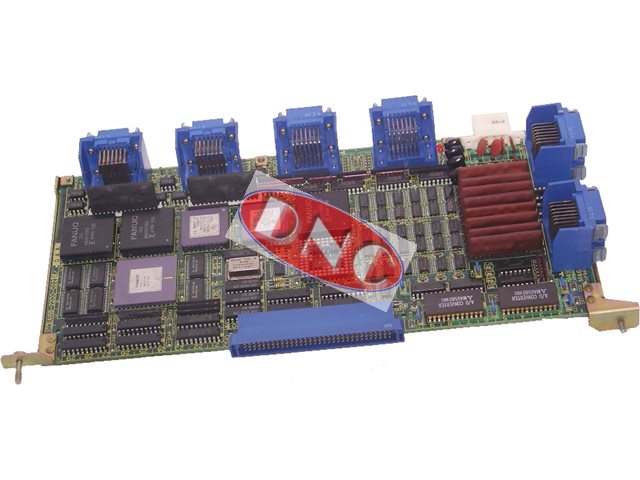

Fanuc A16B-2200-0220 Axis Board. This plugin peripheral PCB fits into the 0-C master board and gives 3 or 4 channels of 16bit servo control. Known as the 3/4 axes card it normally is supplied in its 3 axis configuration then the end user will move their LSI across for 4th channel.
At the point of manufacturer Fanuc was in coloboration with GE hence creating GE Fanuc brand which supplied CNC throughout Europe. The A16B22000220 board is non-surface mount PCB.
As the first release of axes boards for the 0 model C controls; this board controls digital servo amplifier units. Namely S series servo amplifiers and the earlier 185V AC digital servo drives.
Certain alarms on series 0-C that can be caused by this card or the master PCB. Namely alarms 914 and 920 being the main alarms. Consult the series 0 alarms for 0C faults.
If unsure of the alarms on your Fanuc 0-C control then we can test this board and the complete 0-MC or 0-TC control system.
Contact us on +44 (0)1793 615356 for further information on stock, prices for various services beyond listed on this page. Turnaround times on testing and repair or rebuild services dependent on the condition of your 16bit 3//4 0-C axes board.
