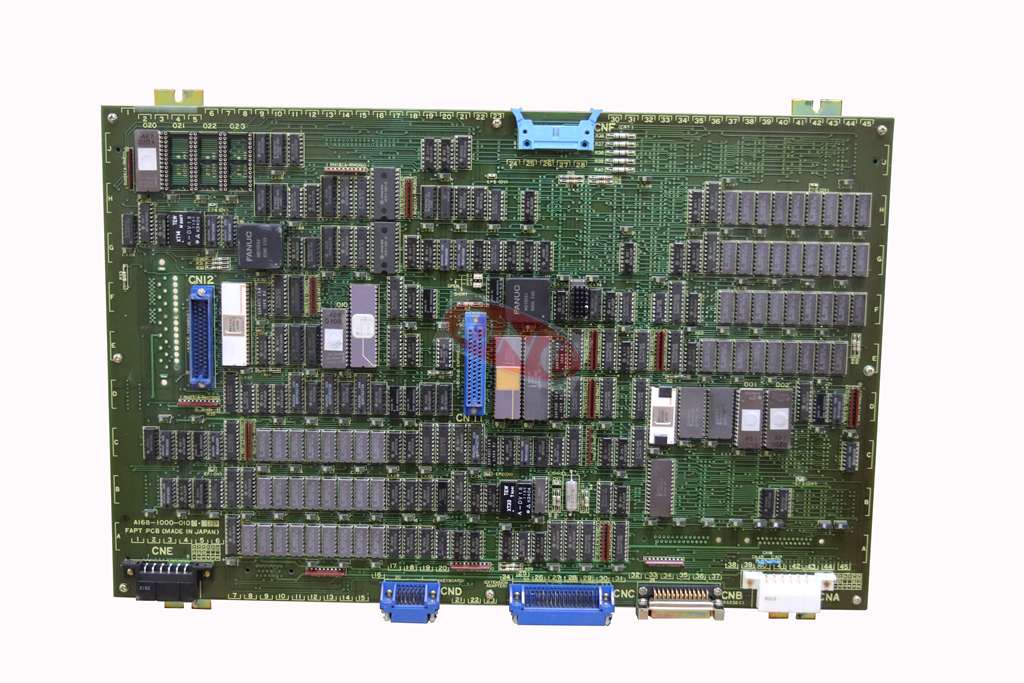

Fanuc A16B-1000-0100 control board. Acting as a sub processing board connected to the main SYSTEM 3 master PCB. This board expands the system 3 to 3TF allowing for colour graphics and FAPT which is an acronym for Fanuc Automatically Programmed Tools. The board takes onboard power through its CNE and CNA connector for various functions.

Further the A16B-1000-0100 connects to addtional Fanuc boards via CNF male socket at the top of the PCB; which is normally present on the same machine mounting plate.
