A86L-0001-0111

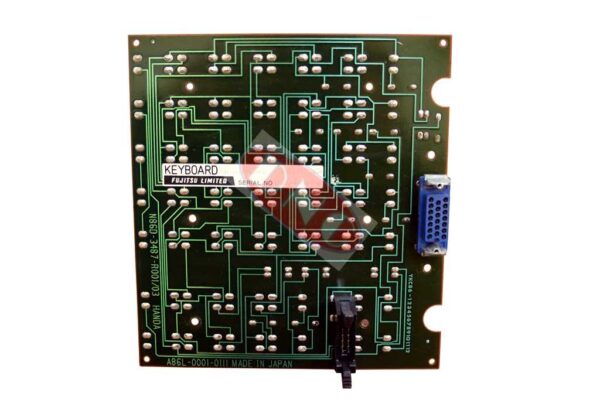

Fanuc A86L-0001-0111 40 key (switch) for horizontal CRT/MDI Unit. This horiz. keyboard is normally fitted with 9 inch green monochrome CRT monitor within the MDI/CRT panel. The A86L00010111 rectangular keyboard is for many Fanuc control series including the 10M, 10T, 11M, 11T systems. This keyboard sits behind the A98L00010482#M or T membranes on A02B-0076-Cxxx CRT/MDI units.
DNC offers exchange, testing facilities and if no exchange available upon calling repair is possible. Alternate part number is N860-3487-T010 and N86D-3487-T001/01 on the reverse side.
