A02B-0211-B501

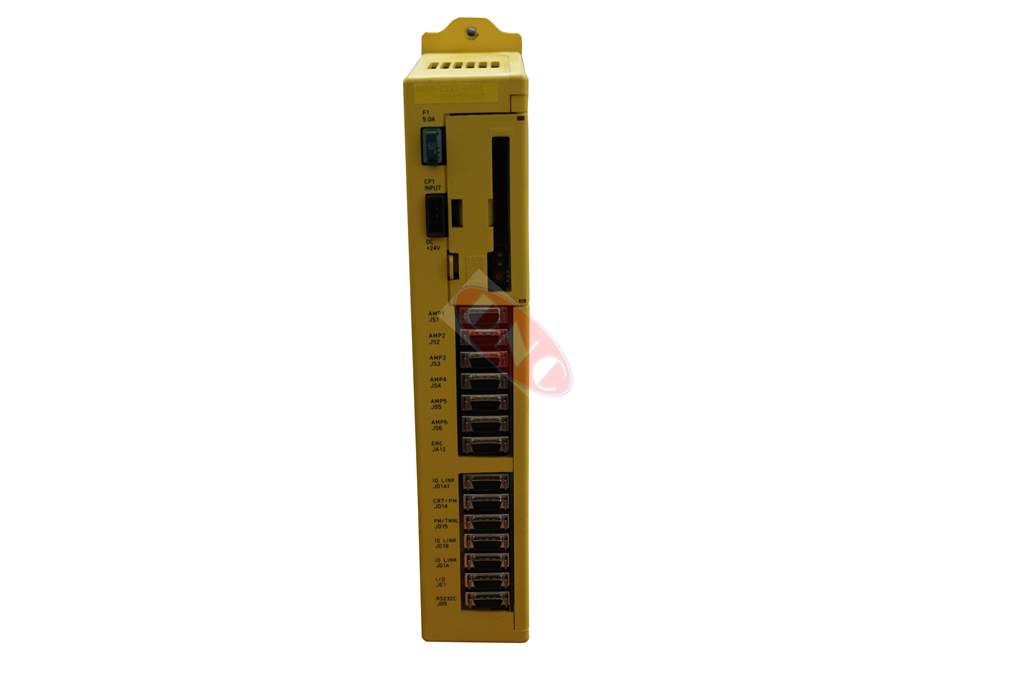

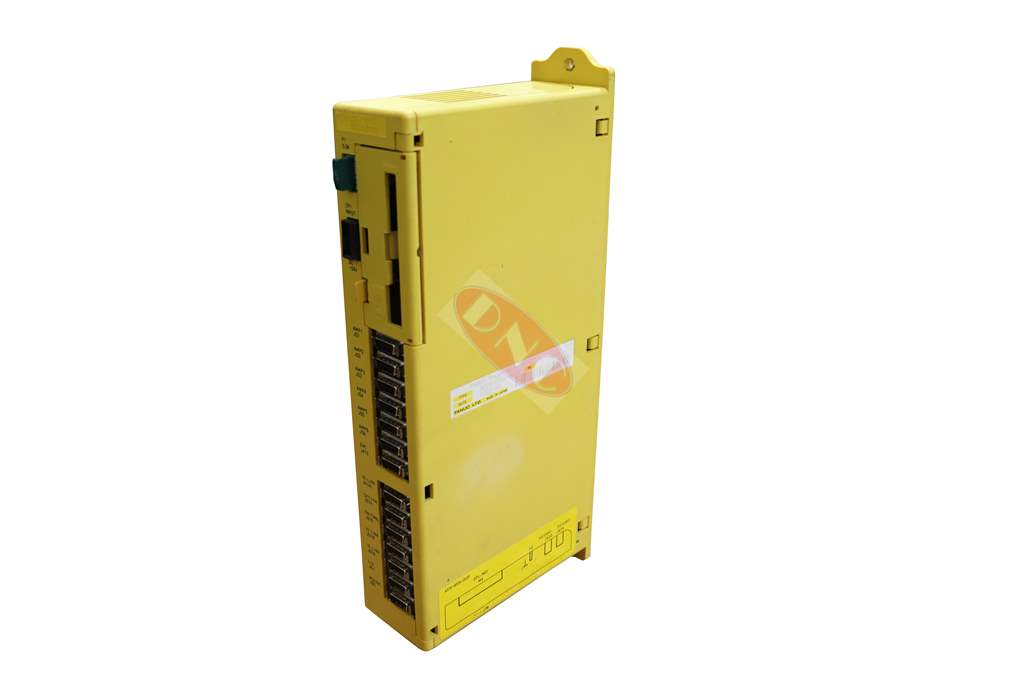

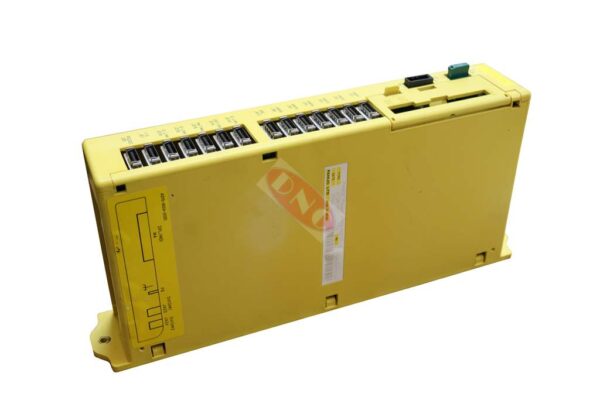

Fanuc A02B-0211-B501 Control. This GE Fanuc series Power Mate Model-H is the complete CNC control system which includes the A20B-1004-0960 power supply unit. DNC do offer support Fanuc PowerMate controls at this moment.

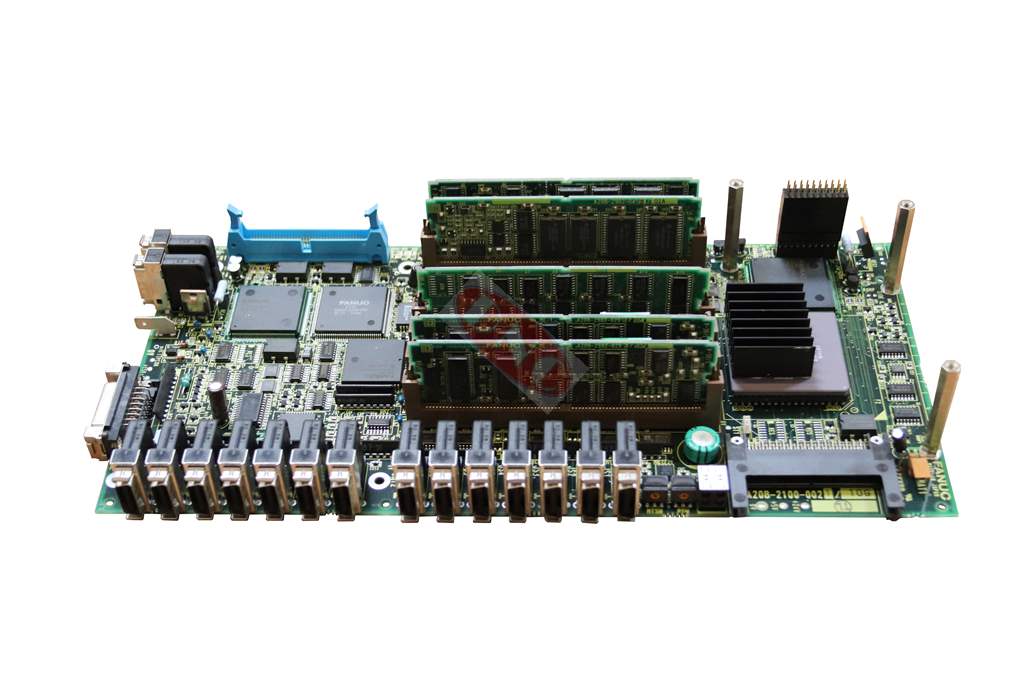

At DNC we can supply complete Powermate model H unit. Which does contain the main PCB A20B-2100-0021. Plugged into the main board are many potential SMD’s including servo, graphics, pmc and spindle controllers. Our current version has the following SMD modules: A20B-2902-029x (SERVO), A20B-2901-0480 (CRT control); A20B-2901-0660 (PMC Ladder); A20B-2902-045x (CONTROL).
If you know which SMD’s you have fitted and have a full backup of all the SRAM and other FROM based information then we should be able to supply. Otherwise you can ship your PowerMate model H to us for inspection and test. We always require the system backup too be able to proceed with inspections.
