A02B-0259-B501

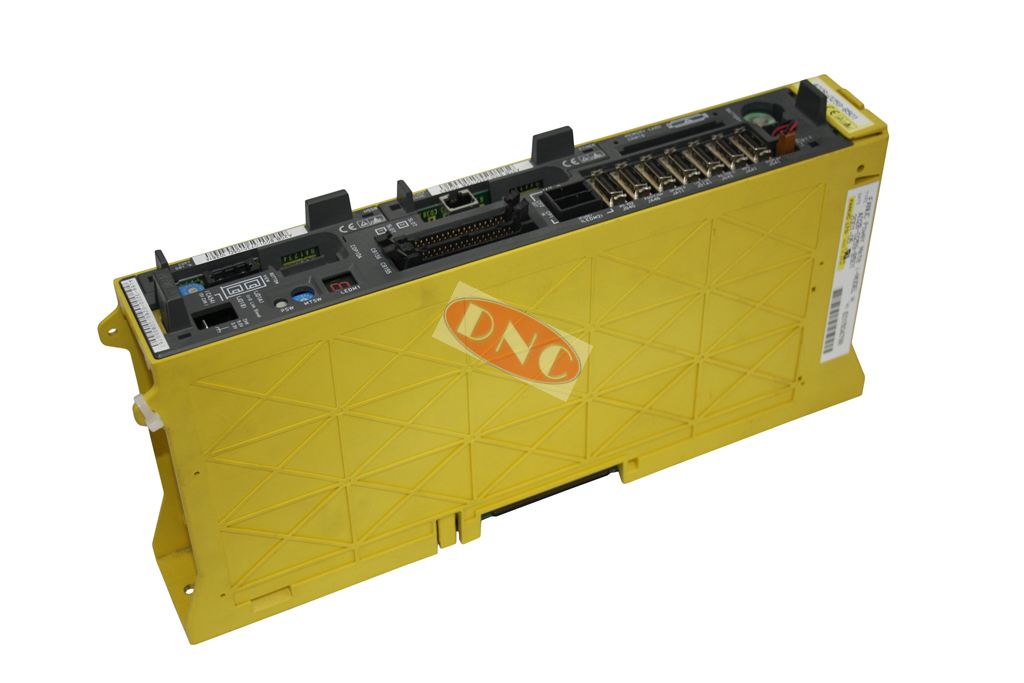

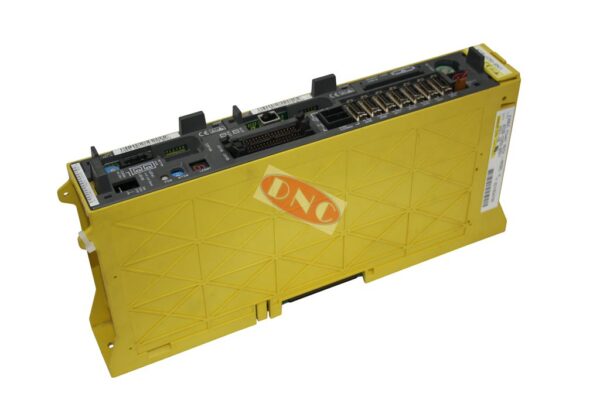

Fanuc A02B-0259-B501 Control. This GE Fanuc series Power Mate i Model D/H is a complete CNC control capable of controlling 4 servo channels in various configurations.
DNC do support these powermate i-model D and H controls. Unfortunately with most system A02B part numbers they are generic and can contain hundreds of different SMD configurations from major boards such as CPU’s through size of memory, number of servo axis channels.

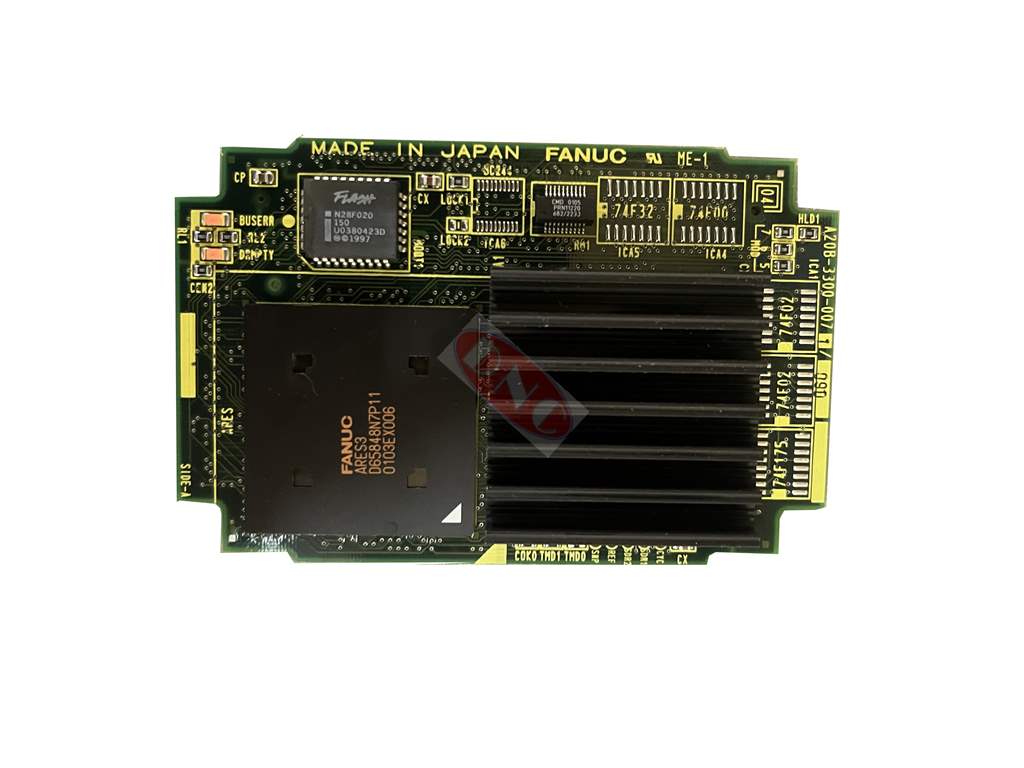

Both the powermate i-model D or H are based on the A16B-3200-0260 main control PCB. The major difference seems to be whether the CPU is a A20B-3300-0261 (MMX pentium) or the older A20B-3300-0071 (486DX2 type); DRAM from 4MB or 8MB and the combined FROM + SRAM card memory. We have many different configuartions and SMD boards, so we can copy what you need.
